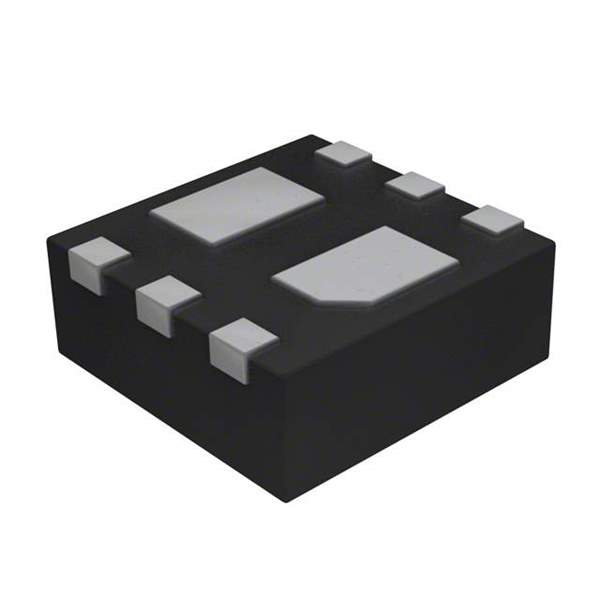

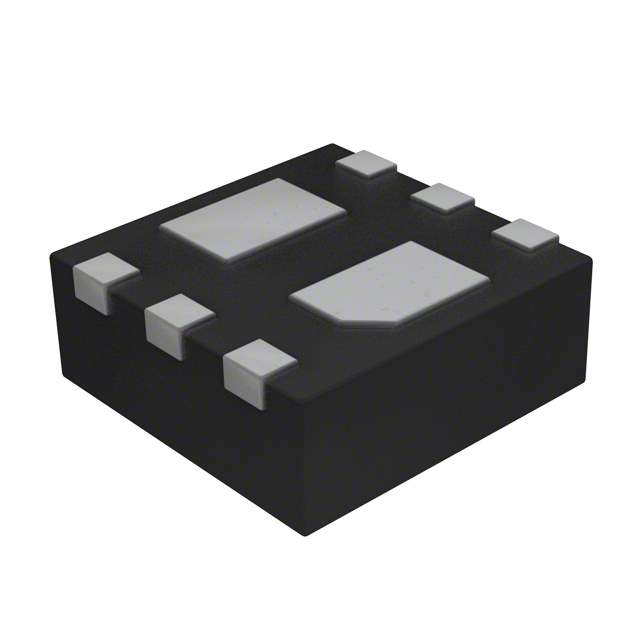

Introducing the CSD85301Q2 NexFET™ Power Block from Texas Instruments

The CSD85301Q2 is a state-of-the-art, high-performance power MOSFET designed by Texas Instruments (TI) to cater to a wide array of power management applications. This compact and efficient device is part of TI's NexFET™ power block lineup, which is renowned for its low resistance and high switching frequencies.

At the heart of the CSD85301Q2 lies a dual N-channel configuration, which is optimized for synchronous buck applications. This design allows for both high-side and low-side MOSFETs to be integrated into a single 2mm x 2mm SON package. This small footprint does not only save space on the PCB but also significantly reduces the inductance, enhancing overall performance.

With an impressive continuous drain current (Id) of 15A, the CSD85301Q2 is capable of handling significant power without sacrificing efficiency. This is partly due to its low on-resistance (Rdson), which stands at just 8.7 mΩ at a gate voltage of 4.5V. The device's low charge values, including a low gate charge (Qg) and low output charge (Qoss), contribute to its fast switching capabilities, making it an ideal choice for high-frequency applications.

The CSD85301Q2 is also characterized by its robust thermal performance. The power block is designed to dissipate heat effectively, ensuring stable operation even under high current conditions. This is critical for maintaining performance and reliability over the product's lifespan.

Furthermore, the device includes features such as an industry-standard pinout and RoHS compliance, ensuring it meets the environmental standards and is compatible with existing designs, facilitating easy integration into new and existing power systems. Whether you're designing power supplies, computing systems, or telecommunication equipment, the CSD85301Q2 offers a versatile and reliable solution for your power management needs.

By choosing the CSD85301Q2 NexFET™ Power Block, engineers can benefit from Texas Instruments' commitment to quality and performance, ensuring that their products are powered efficiently and reliably.
