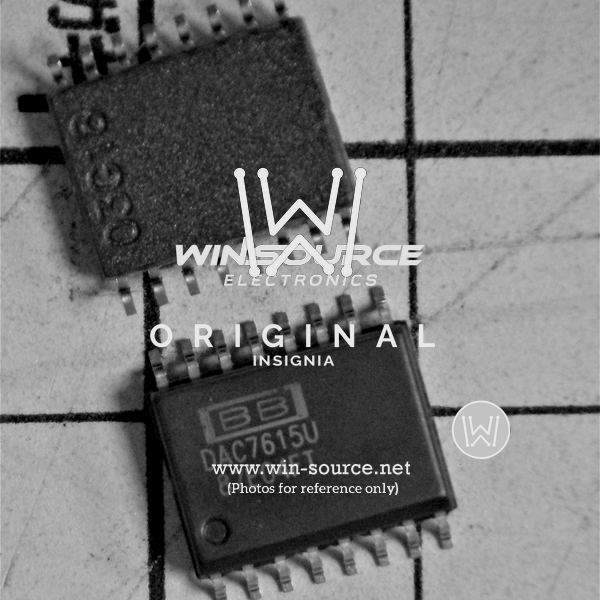

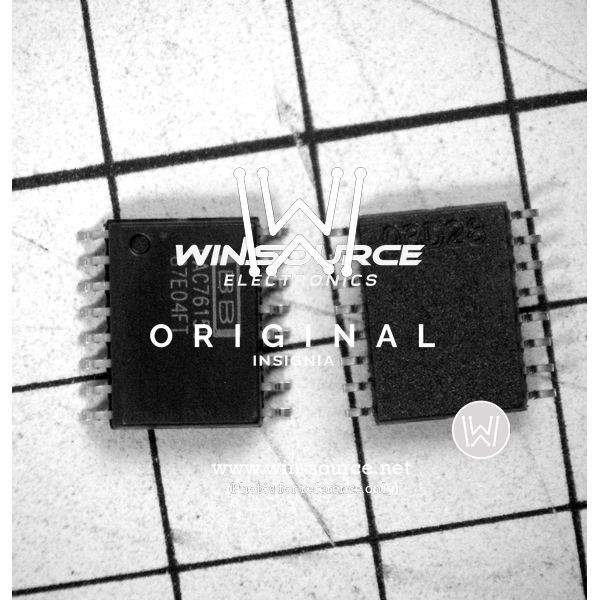

The DAC7615U is a high-performance, quad 12-bit digital-to-analog converter (DAC) designed and manufactured by Texas Instruments. This precision device is ideal for a wide range of applications, including process control, data acquisition systems, and digital signal processing. The DAC7615U offers exceptional accuracy and stability, making it a reliable choice for critical applications where precise analog output is essential.

Key Features:

• Four 12-Bit DACs: The DAC7615U contains four independent 12-bit DAC channels, allowing for multiple analog outputs from a single device.
• Serial Interface: It features a flexible serial interface that is compatible with standard SPI, QSPI, MICROWIRE, and DSP interface standards, ensuring easy integration with a variety of microcontrollers and digital systems.
• Low Power Consumption: Designed for power-sensitive applications, the DAC7615U operates with a low power consumption, making it suitable for portable and battery-operated equipment.
• Settling Time: The device offers a fast settling time, which is critical for applications requiring quick response times.
• Voltage Output: Each of the four DACs provides a voltage output that can be programmed via the serial interface, giving users precise control over the analog signal.
• Wide Power Supply Range: The DAC7615U operates over a wide power supply range, accommodating various system design requirements.
• Compact Package: The device comes in a small-outline package, which is ideal for space-constrained applications.

Applications:

• Industrial Process Control
• Data Acquisition Systems
• Digital Signal Processing
• Automated Test Equipment
• Portable and Battery-Powered Instruments

The DAC7615U from Texas Instruments is a versatile and precise component that enhances the performance of a broad spectrum of systems. Its combination of high resolution, low power, and compact design make it an excellent choice for designers looking to implement multiple DACs within their projects.
