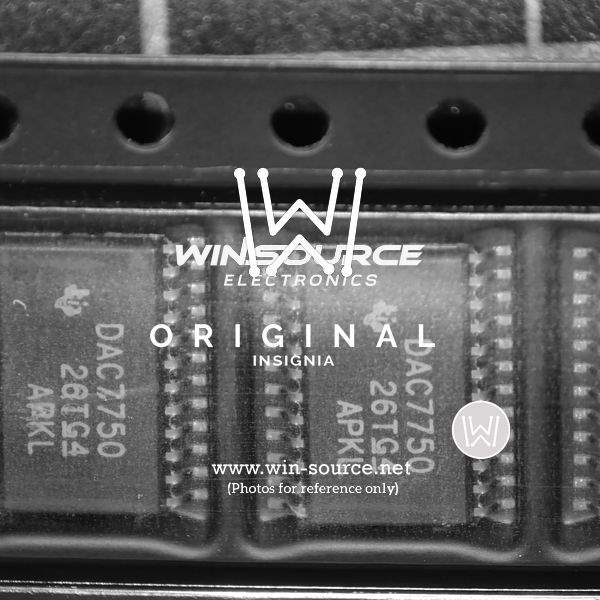

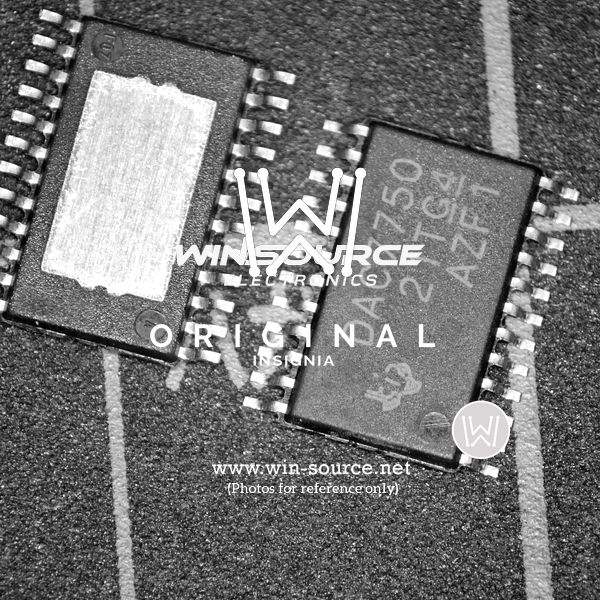

Texas Instruments DAC7750IPWPR Digital-to-Analog Converter

The Texas Instruments DAC7750IPWPR is a high-performance, programmable, single-channel digital-to-analog converter (DAC) designed to deliver precision and reliability for a wide range of industrial applications. This device is part of TI's extensive DAC product line, known for its exceptional accuracy and stability over time and temperature variations.

Key Features

• Precision: The DAC7750IPWPR boasts a 16-bit resolution, ensuring fine granularity and precise control over analog output signals.
• Programmability: It features a flexible serial peripheral interface (SPI) that allows for easy configuration and adjustment of output ranges, making it suitable for a variety of tasks.
• Integrated Features: This DAC includes an internal reference and output amplifier, simplifying the design and reducing external component requirements.
• Output Range: The device supports multiple selectable output ranges, providing versatility for different voltage requirements.
• Power Supply: It operates from a single power supply ranging from 10V to 36V, or a dual supply from ±5V to ±18V, accommodating various system power designs.
• Package: The DAC7750IPWPR is available in a compact 14-pin HTSSOP package, which is ideal for space-constrained applications.

Applications

The DAC7750IPWPR is suitable for a broad array of industrial applications, including:

• Process control and automation
• Data acquisition systems
• Closed-loop servo controls
• Programmable voltage and current sources
• Test equipment

Reliability and Safety

Designed with industrial environments in mind, the DAC7750IPWPR is built to withstand harsh conditions while maintaining its performance. It features thermal shutdown and overcurrent protection, ensuring the safety and longevity of both the DAC and the systems it integrates with.

Overall, the Texas Instruments DAC7750IPWPR is a robust and versatile component that offers designers the precision and programmability needed for sophisticated analog output tasks. Its integration of key features with a focus on reliability makes it an excellent choice for engineers looking to enhance their industrial systems.
