Texas Instruments DAC8811IBDGKTG4 Digital-to-Analog Converter

The DAC8811IBDGKTG4 is a high-performance, precision digital-to-analog converter (DAC) designed by Texas Instruments, a leader in semiconductor solutions. This DAC is part of TI's extensive data converter portfolio and is engineered to deliver accurate analog output from digital input signals. It is suitable for a wide range of applications, including process control, automated test equipment, and digital gain and offset adjustment.

This particular model, the DAC8811IBDGKTG4, offers 16-bit resolution, which ensures fine granularity and precise control over the analog output. It operates with a single power supply ranging from +2.7V to +5.5V, making it versatile for use in both low-voltage and standard systems. The DAC8811 integrates a multiplying digital-to-analog converter, which allows for variable output ranges and gains when used in conjunction with an external reference voltage.

The device features a fast settling time, typically 10 microseconds, enabling rapid updates of the analog output, which is critical for dynamic system requirements. Additionally, the DAC8811IBDGKTG4 boasts a low glitch energy, which minimizes the transient errors during output changes, thereby enhancing the overall system stability and performance.

Communication with the DAC8811IBDGKTG4 is implemented via a 3-wire serial interface that is compatible with SPI, QSPI, MICROWIRE, and DSP interface standards, providing flexibility in system design and ease of integration with various microcontrollers and digital signal processors.

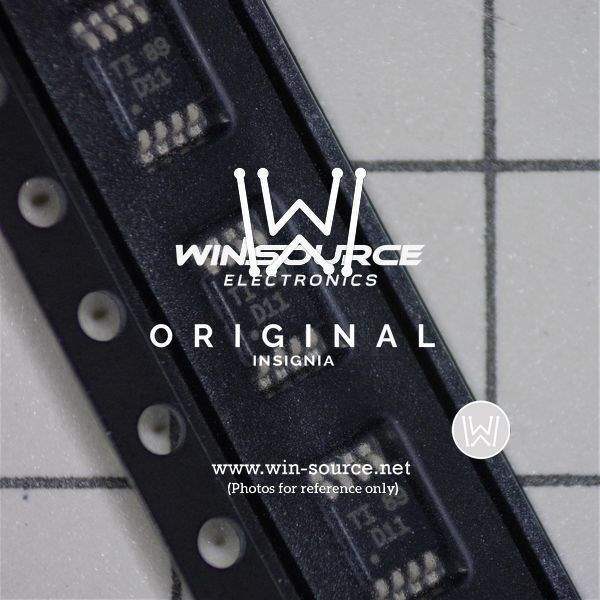

The DAC8811IBDGKTG4 comes in a compact VSSOP (Very Small Shrink Outline Package) form factor, with a body size of 4.40 mm x 3.10 mm. This small footprint allows for efficient use of board space, which is especially beneficial in space-constrained applications.

Key features of the DAC8811IBDGKTG4 include its excellent linearity, low power consumption, and an on-chip power-on reset circuit that ensures the DAC output powers up at zero scale or midscale, depending on the status of the MSB (Most Significant Bit). This behavior prevents any unwanted analog output at power-up, contributing to the safe and predictable operation of the end application.

Overall, the DAC8811IBDGKTG4 from Texas Instruments is a reliable and precise DAC solution that meets the demands of modern electronic systems, providing designers with a high degree of control and accuracy in analog signal generation.
