Same model may have multiple batches, images only for reference.

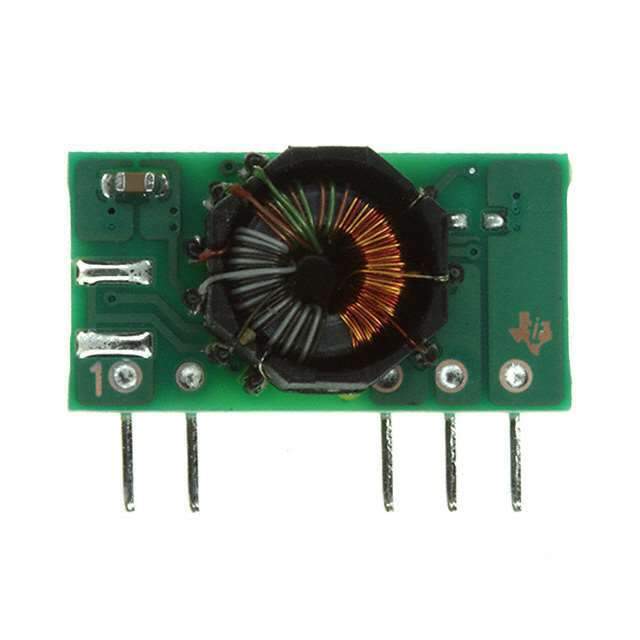

DCH010512DN7 Real Image
Same model may have multiple batches, images only for reference.

DCH010512DN7

Part No DCH010512DN7
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC-DC MINI 1W 3KVDC ISOL
Datasheet
DCH010512DN7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series DCH01
Packaging Tray
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 42mA, 42mA
Power (Watts) - Manufacture Series 1W
Voltage - Isolation 3kV (3000V)
Applications ITE (Commercial)
Mounting Style Through Hole
Package 7-SIP Module (5 Leads)
Size / Dimension 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 75%
Power (Watts) - Max 1W
Win Source Part Number 013838-DCH010512DN7
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DCH010512DN7 CAD Model

Description

DCH010512DN7 - High Efficiency DC-DC Converter

The DCH010512DN7 is a compact and efficient DC-DC converter designed for industrial and commercial applications. This converter facilitates the seamless conversion of DC voltages, ensuring reliable power supply to various electronic devices.

  • Applications:
    • Telecommunications Equipment
    • Industrial Automation Systems
    • Embedded Systems
  • Features and Benefits:
    • High Efficiency Conversion: Reduces power loss and heat generation.
    • Compact Form Factor: Saves board space for more compact designs.
    • Wide Input Voltage Range: Increased flexibility for varied power sources.
  • Additional Details:
    • Output Voltage: 12V
    • Efficiency: Up to 85%
    • Operating Temperature Range: -40°C to 85°C
