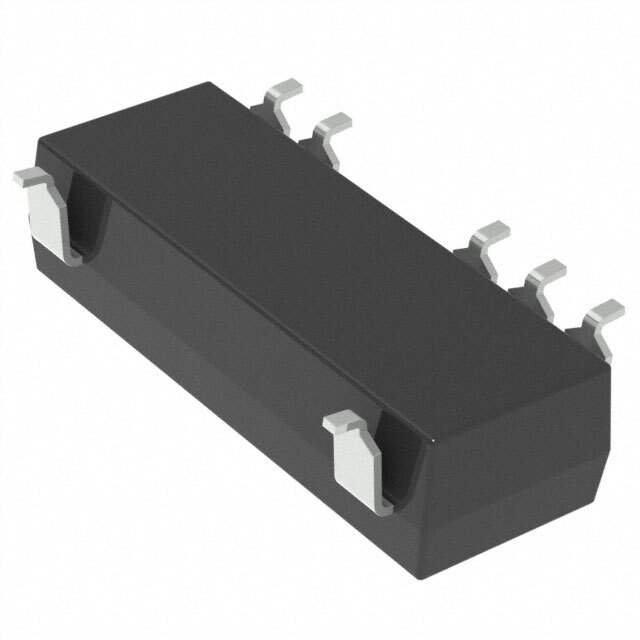

The DCP010515P-U is a highly efficient, isolated DC-DC converter brought to you by Texas Instruments, one of the leading manufacturers in the electronics industry. This innovative product is designed to cater to a wide range of applications that require electrical isolation between input and output, such as industrial control systems, data acquisition systems, and telecommunication equipment.

Key Features

• Isolation: The DCP010515P-U offers a 1kV RMS isolation, providing excellent protection against high voltage spikes and enhancing system reliability by preventing ground loops.
• Output Power: With an output power of up to 1W, this converter can efficiently drive small loads, making it an ideal choice for low-power applications.
• Dual Output: The module features a dual output of ±15V, which is particularly useful for analog circuits that require balanced positive and negative rails.
• High Efficiency: This DC-DC converter operates with high efficiency, minimizing power loss and heat generation, thereby extending the life of your product.
• Compact Size: The DCP010515P-U comes in a compact package, allowing for easy integration into space-constrained designs without compromising on performance.
• Regulated Outputs: The outputs are fully regulated, ensuring a stable voltage supply regardless of input voltage fluctuations or varying load conditions.

Applications

The versatility of the DCP010515P-U makes it suitable for a multitude of applications. It can be used in:

• Isolated sensor interfaces
• Industrial automation and process control
• Data acquisition systems
• Telecommunication devices
• Power supplies for analog and digital circuits

Product Specifications

With a wide input voltage range of 4.5V to 5.5V, the DCP010515P-U ensures compatibility with standard 5V power supplies. The product also features over-current and short-circuit protection, further securing your circuitry from potential damage. Its operating temperature range of -40°C to 85°C allows for deployment in environments with challenging thermal conditions.

In conclusion, the DCP010515P-U from Texas Instruments stands out as a reliable and robust solution for your isolated power requirements. Its compact size, high efficiency, and dual regulated outputs make it a valuable component in any electronic system design.
