The DP83TC812SRHARQ1 is a robust, automotive-qualified physical layer transceiver from Texas Instruments. Designed to meet the rigorous demands of the automotive industry, this device supports 100BASE-T1 Ethernet, which enables high-speed data transmission over a single twisted-pair cable. It is an ideal solution for in-vehicle networks where space and weight savings are crucial.

Key Features

• Single Pair Ethernet: The DP83TC812SRHARQ1 facilitates 100 Mbps transmission over a single twisted-pair cable, reducing wiring complexity and cost.
• Automotive Qualified: Meeting AEC-Q100 standards, this transceiver is designed for reliable operation in the harsh automotive environment.
• Integrated Diagnostics: Advanced on-chip diagnostics, including cable diagnostics and temperature sensing, enhance system reliability and simplify troubleshooting.
• Power Saving Modes: With multiple power saving modes, the DP83TC812SRHARQ1 helps reduce power consumption, which is essential for energy-efficient automotive designs.
• Robust ESD Protection: The device offers built-in electrostatic discharge (ESD) protection, safeguarding the transceiver against the effects of ESD events.

Applications

The DP83TC812SRHARQ1 is suitable for a variety of applications within the automotive sector, including but not limited to:

• Advanced Driver Assistance Systems (ADAS)
• Infotainment and Telematics Systems
• Vehicle Networking and Gateways
• Camera and Sensor Interfaces

Technical Specifications

Some of the technical specifications for the DP83TC812SRHARQ1 include:

• Supply Voltage: 3.3V
• Operating Temperature Range: -40°C to +125°C

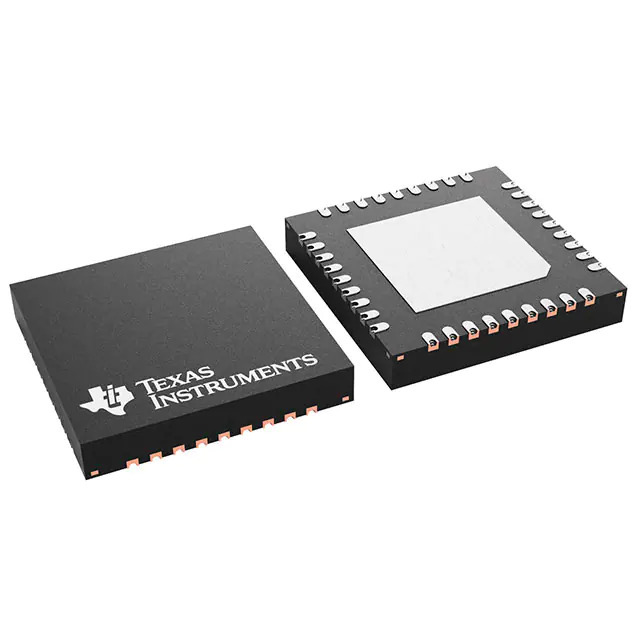

• Package: 32-Pin VQFN
• Standard Compliance: IEEE 802.3bw

For designers and engineers looking to integrate a high-performance, space-efficient Ethernet solution into their automotive applications, the DP83TC812SRHARQ1 from Texas Instruments offers an exceptional blend of features and reliability.
