The DRV8874PWPR is a highly integrated motor driver solution from Texas Instruments, designed to efficiently drive a single brushed DC motor. This advanced H-bridge motor driver is suitable for a wide range of applications, including industrial automation, consumer electronics, and automotive systems.

Key Features

• Voltage Range: The device operates from a supply voltage range of 6.5 V to 45 V, making it versatile for various operating environments and compatible with a broad spectrum of motors.
• Output Current: It can deliver up to 3.5 A of continuous output current, with peak currents up to 5.5 A, supporting the demands of high-power motor applications.
• Smart Gate Drive: The DRV8874PWPR features an integrated smart gate drive architecture that reduces system complexity and provides robust drive capability, enhancing motor performance and reliability.
• Protection Features: It includes multiple protection features such as overcurrent, thermal shutdown, undervoltage lockout, and cross-conduction prevention, ensuring safe operation under various conditions.
• Configurability: The device offers configurable slew rates, current regulation, and multiple control interfaces (PH/EN, PWM, H-bridge control), allowing for flexible design options to meet specific application requirements.

Applications

The DRV8874PWPR is ideal for a range of applications, including:

• Automotive pumps and fans
• Robotics and automated guided vehicles (AGVs)
• Power tools and lawn equipment
• Industrial pumps and valves
• Consumer appliances

Package and Quality

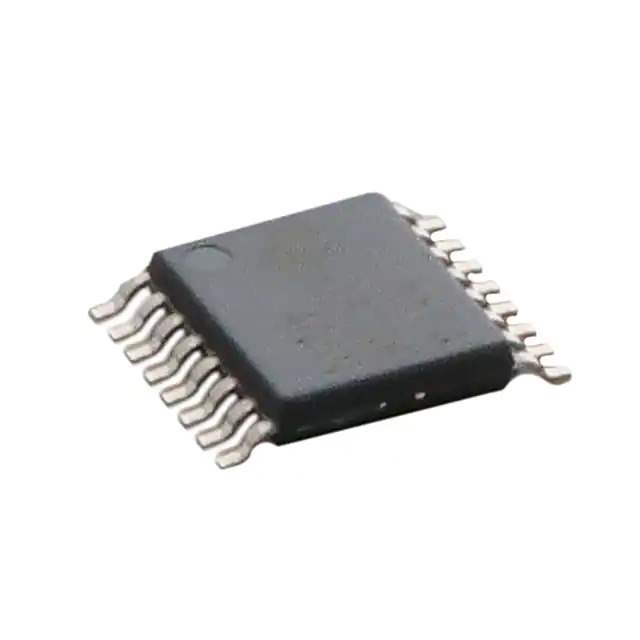

The DRV8874PWPR is available in a 16-pin HTSSOP package with PowerPAD™, which aids in thermal performance and space-saving design. The product adheres to Texas Instruments' high standards of quality and reliability, ensuring long-term performance in a variety of operating conditions.

With its robust feature set and flexible design options, the DRV8874PWPR from Texas Instruments stands out as a comprehensive solution for driving single brushed DC motors with efficiency and precision.
