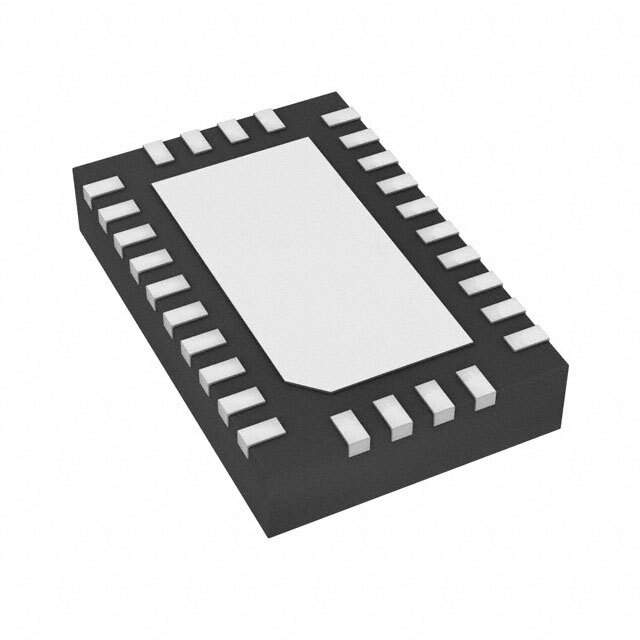

The DRV8881PRHRT is a highly integrated motor driver from Texas Instruments, designed to efficiently drive a bipolar stepper motor or a brushed DC motor. It is a robust solution that caters to a wide range of applications, including printers, scanners, cameras, and other automated equipment that requires precise motor control.

Key Features

• Motor Type Compatibility: The device is capable of driving one bipolar stepper motor or one brushed DC motor, offering versatility for different types of motor applications.
• Output Current: It supports up to 3.5 A peak or 2.5 A RMS output current (with proper heat sinking), delivering the necessary power for a range of motor sizes.
• Operating Voltage Range: The motor driver operates over a wide power-supply voltage range from 6.5 V to 45 V, making it suitable for various industrial and consumer applications.
• Integrated Protection Features: The DRV8881PRHRT includes multiple protection features such as overcurrent, thermal shutdown, undervoltage lockout, and crossover-current protection, enhancing the reliability and longevity of the motor driver.
• Configurable Decay Modes: Users can select between slow, fast, or mixed decay modes, allowing for fine-tuning of motor performance and power consumption.
• PHASE/ENABLE Interface: The simple PHASE/ENABLE control interface provides an easy way to interface with microcontrollers or other control units.

Product Specifications

With its advanced features and comprehensive protection scheme, the DRV8881PRHRT is an ideal choice for designers looking for a reliable and efficient motor control solution. Its robust design and flexible interface options make it a go-to driver for a myriad of motor-driven applications.
