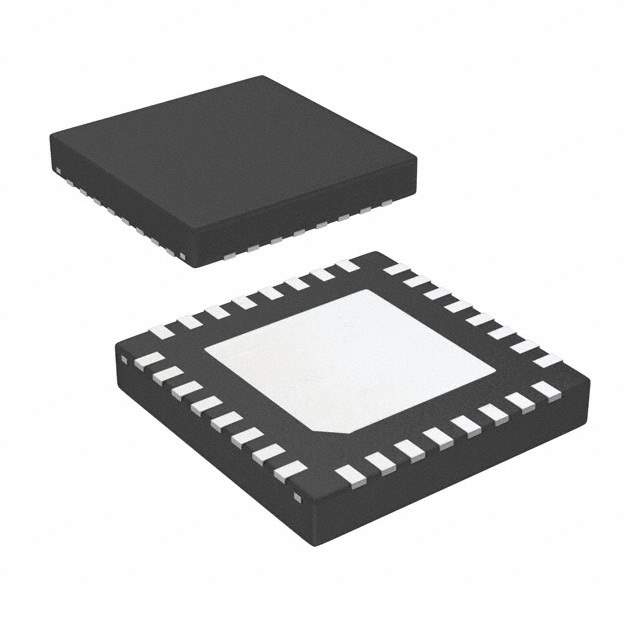

Product Overview: DS91M040TSQ/NOPB

The DS91M040TSQ/NOPB is a high-performance, quad-channel M-LVDS (Multipoint Low-Voltage Differential Signaling) transceiver designed by Texas Instruments. This device is specifically engineered to facilitate reliable, low-power, high-speed data transmission over multipoint networks. The DS91M040TSQ/NOPB is an ideal solution for applications that require robust data communication in noisy environments, such as industrial control systems, telecom infrastructure, and automotive networks.

Key Features

• Type A Media Access Control: The DS91M040TSQ/NOPB supports the M-LVDS standard Type A media access control, which ensures compatibility with the TIA/EIA-899 standard for multipoint data interchange.
• High Data Rates: With support for data rates up to 100 Mbps, this transceiver can handle high-speed communication requirements, making it suitable for a variety of demanding applications.
• Quad-Channel Configuration: The device features four independent transmit and receive channels, offering increased data throughput and design flexibility.
• Low Power Consumption: Designed for energy efficiency, the DS91M040TSQ/NOPB maintains low power dissipation, which is critical for minimizing heat generation and power usage in dense electronic systems.
• Robust ESD Protection: The transceiver is equipped with robust electrostatic discharge (ESD) protection, safeguarding the device from the common risks associated with handling and operation in industrial environments.
• Wide Temperature Range: It operates over an extended industrial temperature range of -40°C to +85°C, ensuring reliable performance under varying environmental conditions.
• Lead-Free and RoHS Compliant: The DS91M040TSQ/NOPB is provided in a lead-free, environmentally friendly package that complies with RoHS (Restriction of Hazardous Substances) regulations.

Applications

The versatility of the DS91M040TSQ/NOPB makes it suitable for a broad array of applications, including but not limited to:

• Industrial automation and process control
• Telecommunications equipment
• Network switches and routers
• Automotive infotainment and diagnostics systems
• Security systems and surveillance equipment

Overall, the DS91M040TSQ/NOPB transceiver from Texas Instruments represents a reliable, high-speed communication solution that meets the stringent requirements of modern electronic systems. Its robust design and advanced features ensure optimal performance in a wide range of challenging applications.
