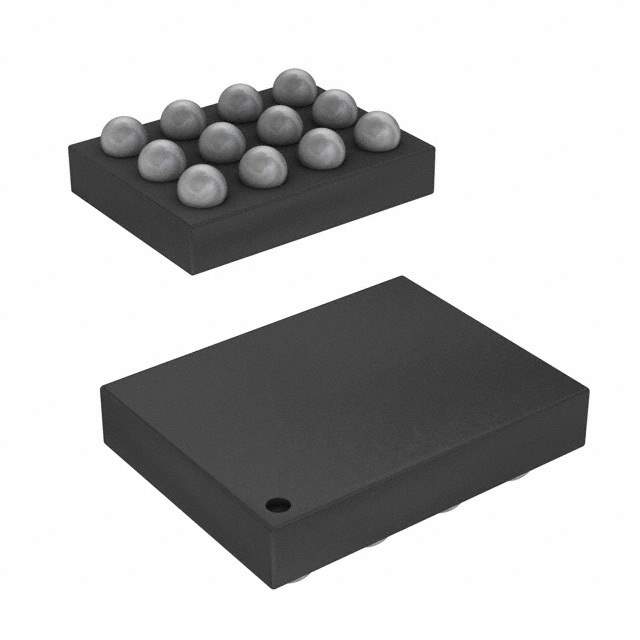

Product Overview: INA231AIYFDR by Texas Instruments

The INA231AIYFDR is a high-precision current, voltage, and power monitor from Texas Instruments, designed to cater to a wide array of applications requiring accurate power monitoring. This integrated circuit (IC) is part of TI's extensive portfolio of power management solutions and stands out for its versatility and performance in system power management and optimization.

Key Features

• High Accuracy: The INA231AIYFDR offers an impressive accuracy level for both current sensing (with a maximum error of ±0.5%) and voltage measurement, ensuring reliable performance for critical applications.
• Wide Common-Mode Voltage Range: This device can measure voltage across shunt resistors over a wide common-mode range from 0V to 26V, independent of the supply voltage, making it suitable for a variety of systems.
• Configurable Averaging Options: It provides multiple averaging options which can be configured as per the application's requirements to filter out noise and improve measurement accuracy.
• Programmable Alert Functions: INA231AIYFDR features programmable alert functions for overcurrent, undervoltage, and overvoltage conditions, ensuring protective measures can be taken promptly.

Applications

The INA231AIYFDR is ideal for a multitude of applications where power monitoring with high accuracy is crucial. Its applications include, but are not limited to:

• Telecommunication Equipment
• Computing Systems
• Battery Management Systems
• Power Supplies
• Industrial and Automotive Systems

Technical Specifications

The INA231AIYFDR operates with a supply voltage ranging from 2.7V to 5.5V and offers an I2C interface, which allows for two bidirectional open-drain lines to be used for communication with the microcontroller. The IC comes in a compact 10-pin DFN package, which is highly suitable for space-constrained applications.

Conclusion

Overall, the INA231AIYFDR by Texas Instruments is a robust solution for designers looking to integrate precise power monitoring into their systems. Its high accuracy, wide voltage range, and programmable features make it an invaluable tool for optimizing power consumption and ensuring system reliability.
