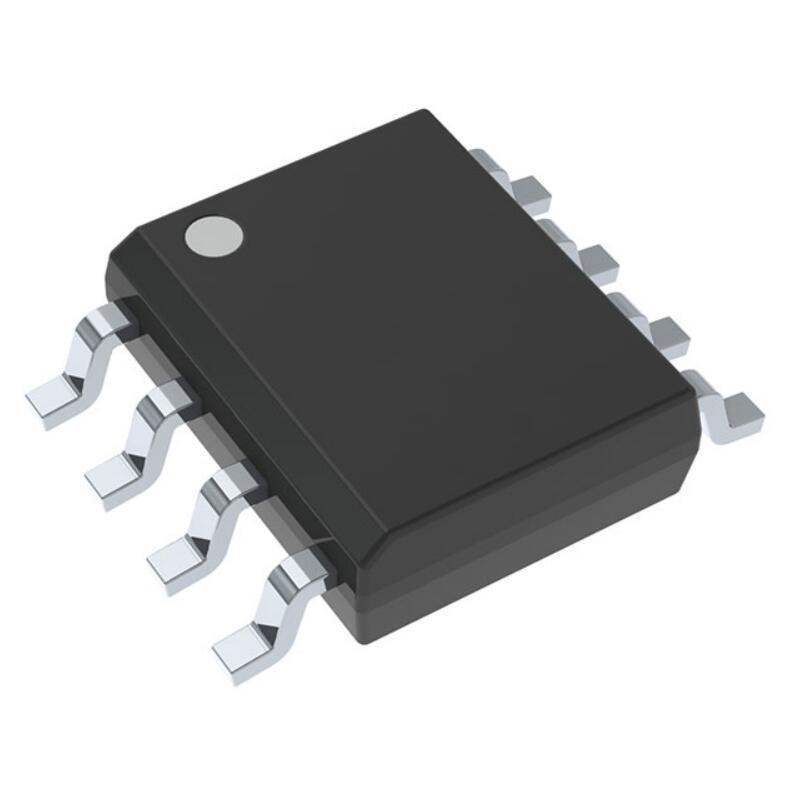

Product Overview: INA240A4D from Texas Instruments

The INA240A4D is a precision current-sensing amplifier from Texas Instruments, designed to cater to a wide array of applications requiring accurate current measurement. This device is part of the INA240 series, which is known for its high accuracy, low offset, and the ability to measure both high-side and low-side currents.

Key Features

• Wide Common-Mode Range: The INA240A4D is capable of operating over a common-mode voltage range of -4V to +80V, making it suitable for both automotive and industrial applications.
• High Accuracy: With a gain error of just ±0.1% (max) and an offset voltage of ±25 µV (max), this amplifier ensures precision in current measurement.
• High Bandwidth: The device features a bandwidth of up to 400 kHz, which allows for fast current sensing suitable for monitoring transient events.
• Multiple Gain Options: This particular model, the INA240A4D, provides a gain of 200 V/V, but the INA240 series offers a range of gains to choose from, accommodating various application needs.
• Robust Design: The amplifier is designed to be robust with features like over-temperature and electromagnetic interference (EMI) protection, ensuring reliable performance in harsh environments.

Applications

The INA240A4D is versatile and can be used in a variety of applications, including:

• Motor control
• Battery management systems
• Power management
• Overcurrent protection
• Automotive systems such as Electric Power Steering (EPS) and Anti-lock Braking Systems (ABS)

Easy Integration

With its small form factor and easy-to-use features, the INA240A4D is designed for straightforward integration into both existing and new systems. Its SOIC-14 package is compatible with standard PCB layouts, allowing designers to easily include it in their designs without the need for complex circuitry.

Conclusion

The INA240A4D from Texas Instruments stands out as a high-performance current-sense amplifier that combines precision, speed, and robustness. Its suitability for a wide range of applications makes it a go-to choice for engineers and designers looking to enhance their system's current sensing capabilities.
