Product Overview: INA826AIDRGR by Texas Instruments

The INA826AIDRGR is a high-precision instrumentation amplifier designed and manufactured by Texas Instruments, a leader in the semiconductor industry. This device is known for its exceptional accuracy and low power consumption, making it an ideal choice for a wide range of applications, including medical devices, industrial measurement systems, and consumer electronics.

Key Features

• High Accuracy: The INA826AIDRGR offers a low offset voltage of 25 µV (max) and a low offset drift of 0.1 µV/°C (max), ensuring precise measurements over a wide temperature range.
• Wide Supply Range: With a supply voltage range of 2.7 V to 36 V (or ±1.35 V to ±18 V), this device is highly versatile and can be used in systems with varying power requirements.
• Low Quiescent Current: The device consumes a low quiescent current of 350 µA (max), which is beneficial for battery-powered and energy-efficient applications.
• Adjustable Gain: The gain can be set from 1 V/V to 1000 V/V with a single external resistor, providing flexibility in signal amplification.
• Excellent Common-Mode Rejection Ratio (CMRR): With a CMRR of 100 dB (min) at G ≥ 10, the INA826AIDRGR effectively minimizes the influence of unwanted common-mode signals.
• Robust Design: The device is specified for the extended industrial temperature range of -40°C to 125°C, ensuring reliable performance under harsh conditions.

Applications

The INA826AIDRGR is suitable for a variety of applications, including:

• Bridge amplifiers for pressure, strain, and force measurements
• Thermocouple amplifiers for temperature sensing
• Precision current sensing
• Medical instrumentation such as ECG and EEG monitors
• Battery monitoring systems in energy management

Packaging and Quality

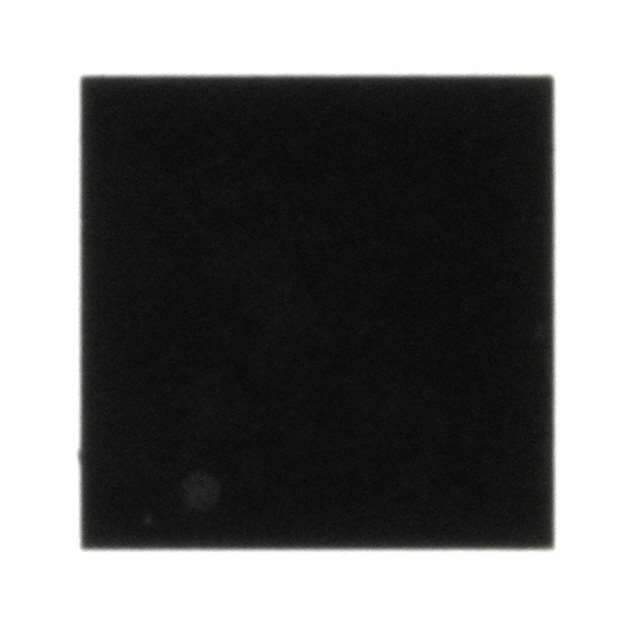

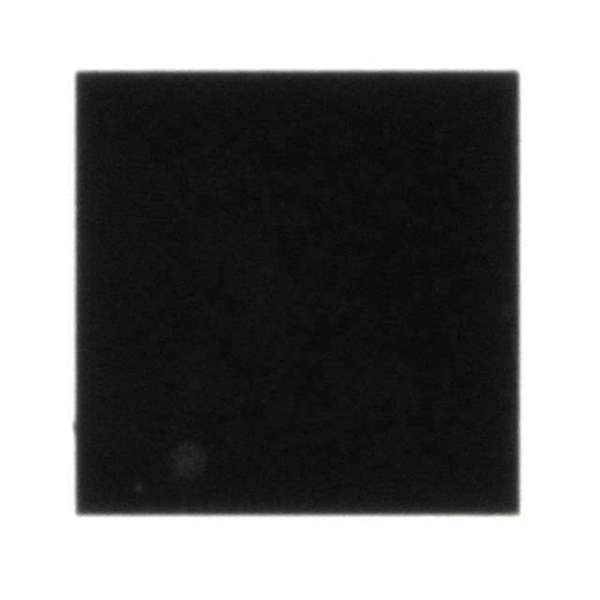

This device comes in a compact QFN-8 package, which is designed to minimize space on a printed circuit board. Additionally, the INA826AIDRGR is part of Texas Instruments' commitment to high-quality products and is RoHS compliant, ensuring that it meets global environmental standards.

With its combination of precision, low power, and flexibility, the INA826AIDRGR from Texas Instruments stands out as a top choice for designers looking to improve the accuracy and efficiency of their electronic systems.
