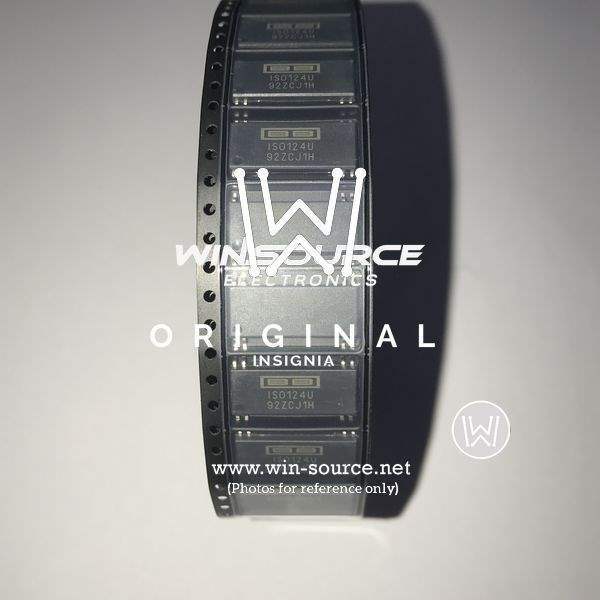

Introducing the ISO124U/1KE4 from Texas Instruments

The ISO124U/1KE4 is a precision isolation amplifier designed by Texas Instruments to cater to a wide array of applications that require high-voltage isolation and low signal distortion. This product is particularly suitable for industrial applications, including process control, data acquisition systems, test equipment, and anywhere precise signal replication across a potential difference is needed.

Key Features

• Precision Isolation: The ISO124U/1KE4 ensures accurate signal transfer from high voltage sources while providing galvanic isolation up to 1500Vrms for 60 seconds between input and output, which is crucial for safety and noise immunity.
• High Linearity: With a nonlinearity specification of only 0.01%, users can trust in the fidelity of the signal being transmitted without significant distortion.
• Low Offset Voltage: A low offset voltage minimizes errors in signal processing, ensuring that the output closely mirrors the input.
• Wide Bandwidth: The device offers a wide bandwidth of 60kHz, allowing it to be used in applications that require fast signal response.
• Single-Supply Operation: Capable of operating with a single 5V power supply, the ISO124U/1KE4 simplifies power design requirements.

Applications

The ISO124U/1KE4's robust design and high precision make it an ideal choice for a variety of applications, such as:

• Industrial process controls
• Data acquisition systems
• Test and measurement equipment
• Medical equipment with stringent isolation requirements
• Motor control systems

Reliability and Quality

Texas Instruments is known for its commitment to quality and reliability, and the ISO124U/1KE4 is no exception. Each unit undergoes rigorous testing to ensure it meets the high standards expected from a leading semiconductor manufacturer. The ISO124U/1KE4's robust construction and proven design mean it can be relied upon in the most demanding environments.

Conclusion

The ISO124U/1KE4 isolation amplifier is a testament to Texas Instruments' dedication to providing high-quality, innovative solutions for complex electronic systems. Its ability to deliver precise, isolated signal amplification makes it a top choice for professionals in a range of industries looking for reliability and performance.
