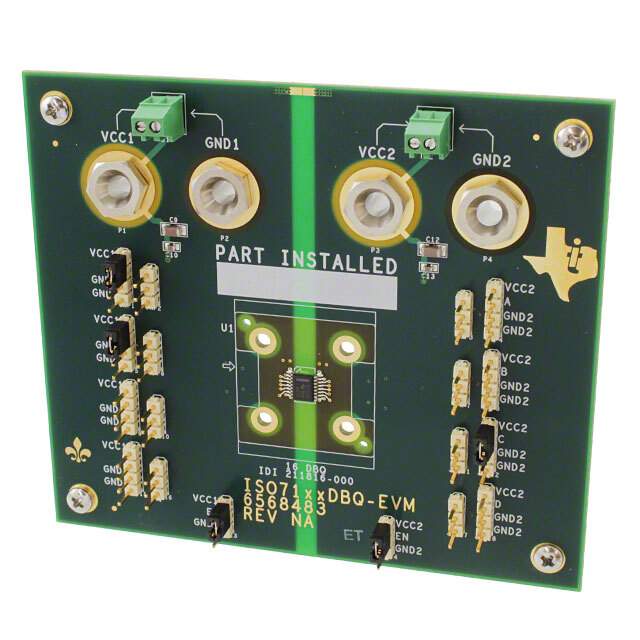

ISO71XXDBQ-EVM Evaluation Module from Texas Instruments

The ISO71XXDBQ-EVM from Texas Instruments is an exceptional tool designed for engineers and developers to evaluate the performance and capabilities of the ISO71xx family of digital isolators. This evaluation module (EVM) is specifically tailored to aid in the testing and prototyping of applications requiring high isolation voltage, low power consumption, and robust electromagnetic compatibility (EMC).

The ISO71xx series includes a range of devices with different channel configurations and data rates, making the EVM versatile for various applications such as industrial automation, motor control, medical equipment, and power supplies. The ISO71XXDBQ-EVM allows for a straightforward assessment of these digital isolators, thanks to its user-friendly design that requires no additional hardware for operation.

Key Features:

• Isolation Voltage: The EVM supports isolation voltages up to 3000 V<sub>RMS, providing a high degree of protection against electrical noise and surges.
• Channel Configurations: It accommodates multiple channel configurations, enabling the testing of uni-directional or bi-directional data communication.
• Data Rates: The module supports data rates up to 100 Mbps, allowing for high-speed data transfer and communication.
• EMC Performance: The ISO71XXDBQ-EVM is designed for excellent EMC performance, which is critical in harsh industrial environments.
• Easy to Use: The EVM comes with pre-installed headers and connectors, simplifying the connection to test equipment or a host system.

Applications:

• Industrial Automation
• Motor Control Systems
• Medical Devices
• Power Supply Units

The ISO71XXDBQ-EVM is an indispensable tool for designers and engineers looking to harness the advantages of the ISO71xx digital isolators in their projects. With its ease of use, comprehensive feature set, and the backing of Texas Instruments' expertise, this evaluation module is an excellent starting point for developing isolated communication solutions that demand reliability and performance.
