Product Overview: Texas Instruments LDC1051NHRR

The LDC1051NHRR is a highly precise inductance-to-digital converter (LDC) designed by Texas Instruments (TI) for short-range, high-resolution sensing applications. This innovative product is part of TI's LDC portfolio, which is renowned for providing reliable solutions for converting inductance changes into a digital output. The LDC1051NHRR is particularly suited for industrial, automotive, and consumer electronics markets where accuracy and reliability are paramount.

Key Features

• Resolution: The device boasts a high-resolution 16-bit inductance to digital output, ensuring precise measurements for demanding applications.
• Frequency Range: It operates at a sensor frequency range of 5 kHz to 5 MHz, which can be fine-tuned for various sensing and control applications.
• Interface: An easy-to-use SPI (Serial Peripheral Interface) allows for simple integration into microcontroller-based systems.
• Temperature Range: The LDC1051NHRR operates over a wide temperature range, making it suitable for harsh environments.
• Power Consumption: Low power consumption makes it ideal for battery-powered or energy-efficient devices.

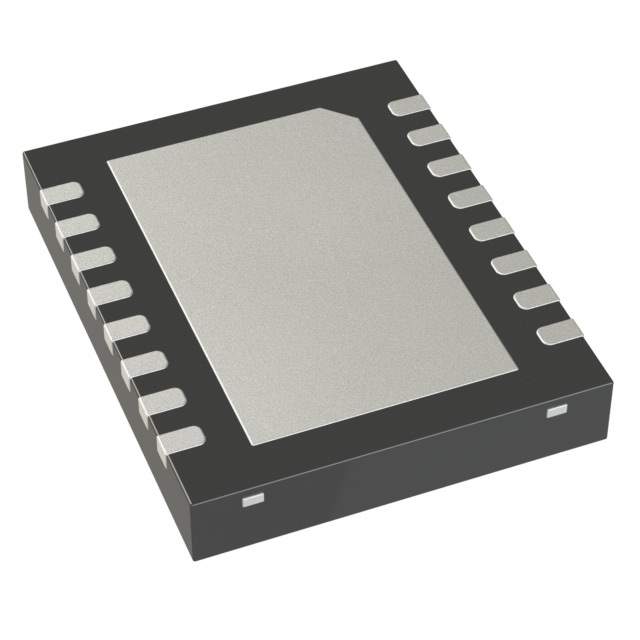

• Package: It comes in a small form factor, with a 16-pin WSON package that is conducive to space-constrained applications.

Applications

The LDC1051NHRR is versatile and can be used across a wide array of applications, including:

• Position sensing
• Proximity detection
• Linear and angular displacement measurement
• Rotation sensing
• Fluid level sensing

Performance and Reliability

Texas Instruments ensures that the LDC1051NHRR meets the highest standards of performance and reliability. The device delivers accurate and stable readings even in the presence of external environmental factors such as temperature variations and electromagnetic interference. This makes the LDC1051NHRR a reliable choice for critical and safety-sensitive applications.

Support and Resources

TI provides comprehensive support for the LDC1051NHRR, including detailed datasheets, application notes, and design resources to facilitate rapid development and deployment. The company's extensive technical support network is also available to help designers integrate the LDC into their projects seamlessly.
