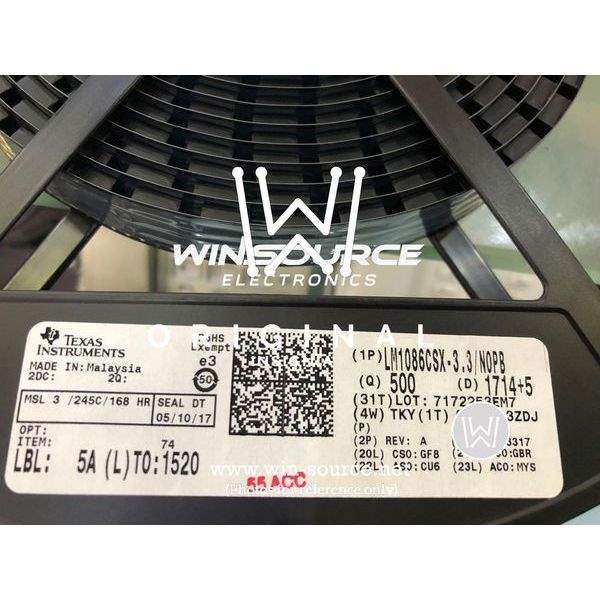

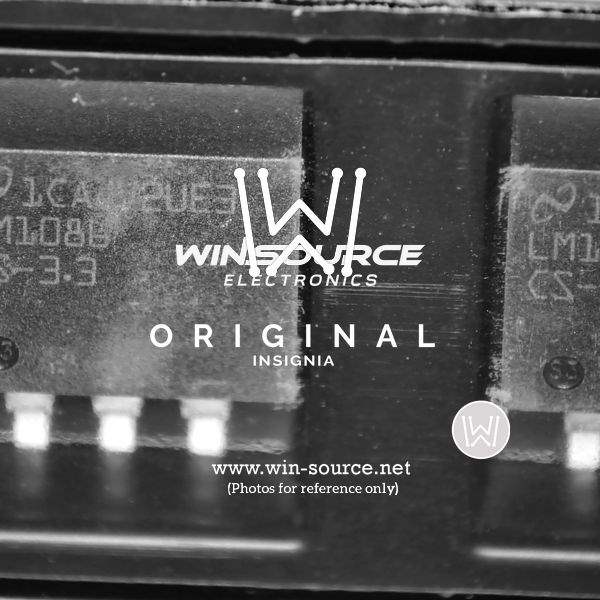

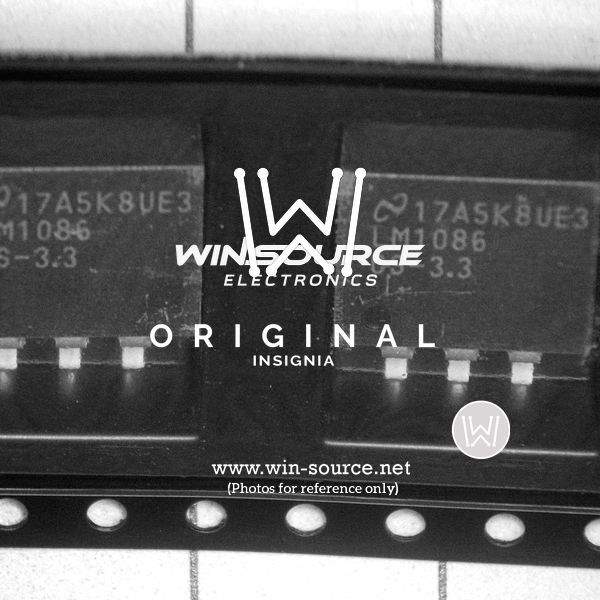

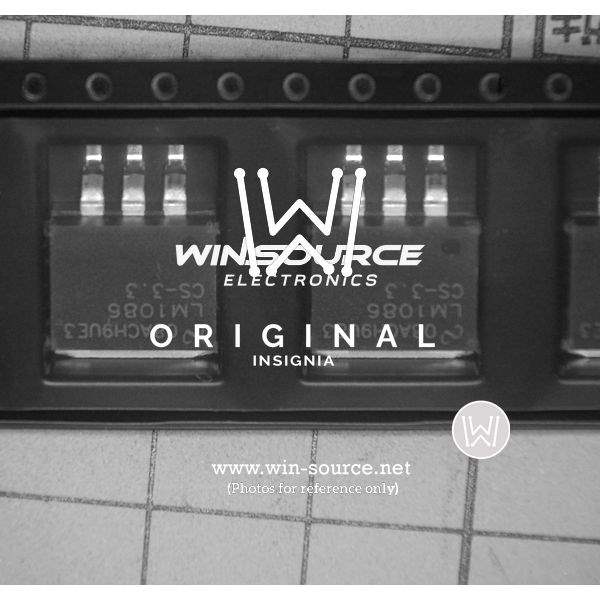

LM1086CSX-3.3/NOPB Texas Instruments LM1086CSX-3.3/NOPB Real Image LM1086CSX-3.3/NOPB label picture LM1086CSX-3.3/NOPB label picture 2 LM1086CSX-3.3/NOPB real image938 LM1086CSX-3.3/NOPB Real Image1 LM1086CSX-3.3/NOPB Real Image2
Same model may have multiple batches, images only for reference.
LM1086CSX-3.3/NOPB Texas Instruments LM1086CSX-3.3/NOPB Real Image LM1086CSX-3.3/NOPB label picture LM1086CSX-3.3/NOPB label picture 2 LM1086CSX-3.3/NOPB real image938 LM1086CSX-3.3/NOPB Real Image1 LM1086CSX-3.3/NOPB Real Image2
LM1086CSX-3.3/NOPB Texas Instruments LM1086CSX-3.3/NOPB Real Image LM1086CSX-3.3/NOPB label picture LM1086CSX-3.3/NOPB label picture 2 LM1086CSX-3.3/NOPB real image938 LM1086CSX-3.3/NOPB Real Image1 LM1086CSX-3.3/NOPB Real Image2
Same model may have multiple batches, images only for reference.

LM1086CSX-3.3/NOPB

Part No LM1086CSX-3.3/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description LDO Regulator Pos 3.3V 1.5A 4-Pin(3+Tab) DDPAK T/R / IC REG LDO 3.3V 1.5A DDPAK
Datasheet
LM1086CSX-3.3/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 27V
Nominal Output Voltage (Min/Fixed) 3.3V
Dropout Voltage-Max 1.5V @ 1.5A
Output Current 1.5A
Operating Supply Current 5mA to 10mA
PSRR 72dB (120Hz)
Control Protection Features Over Current, Over Temperature, Short Circuit
Temperature Range - Operating 0°C to 125°C
Regulator Topology Positive Fixed
Output Voltage 3.3V
Voltage - Dropout (Typical) 1.3V @ 1.5A
Mounting SMD (SMT)
Case / Package DDPAK/TO-263-3
Win Source Part Number 018637-LM1086CSX-3.3/NOPB
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Industrial, Power Management
Family Name LM1086
Introduction Date September 09, 2003
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian LM1086CSX-3.3/NOPB CAD Model

Description

The LM1086CSX-3.3/NOPB is a high-quality, reliable, and efficient voltage regulator from the globally renowned technology company, Texas Instruments.

  • Output Voltage: 3.3V
  • Maximum Input Voltage: 15V
  • Dropout Voltage: 1.5V
  • Output Current: 1.5A
  • Features: Thermal and Short Circuit Protection
  • Package: TO-263
  • Compliance: RoHS compliant and lead-free (NOPB)
