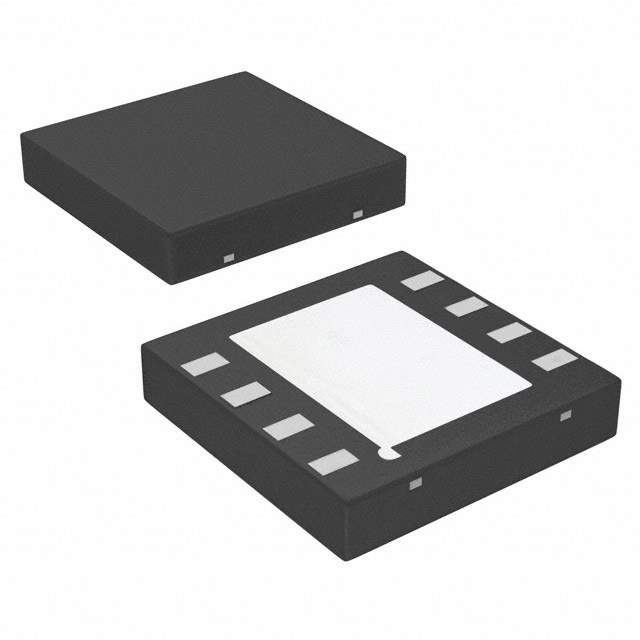

LM1086ILDX-5.0 Real Image
Same model may have multiple batches, images only for reference.

LM1086ILDX-5.0

Part No LM1086ILDX-5.0
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 5V 1.5A 8WSON
Datasheet
LM1086ILDX-5.0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 25V
Nominal Output Voltage (Min/Fixed) 5V
Dropout Voltage-Max 1.5V @ 1.5A
Output Current 1.5A
Operating Supply Current 5mA to 10mA
PSRR 68dB (120Hz)
Control Protection Features Over Current, Over Temperature, Short Circuit
Temperature Range - Operating -40°C to 125°C
Regulator Topology Positive Fixed
Output Voltage 5V
Voltage - Dropout (Typical) 1.3V @ 1.5A
Mounting SMD (SMT)
Case / Package 8-WSON (4x4)
Win Source Part Number 082573-LM1086ILDX-5.0
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LM1086ILDX-5.0 CAD Model

Description

Product LM1086ILDX-5.0 is a high-quality, high-performance low-dropout voltage regulator from Texas Instruments, a renowned global semiconductor design and manufacturing company.

  • Output Voltage: 5.0 V
  • Maximum Dropout Voltage: 1.5 V @ a full load
  • Output Current: Up to 1.5 A
  • Input Voltage Range: 6.5 V to 20 V
  • Protection: Over-temperature and Over-current Protection
  • Package: TO-263
