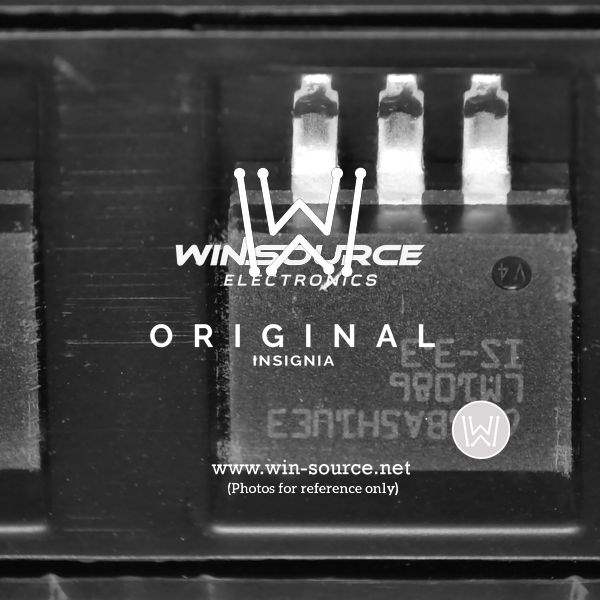

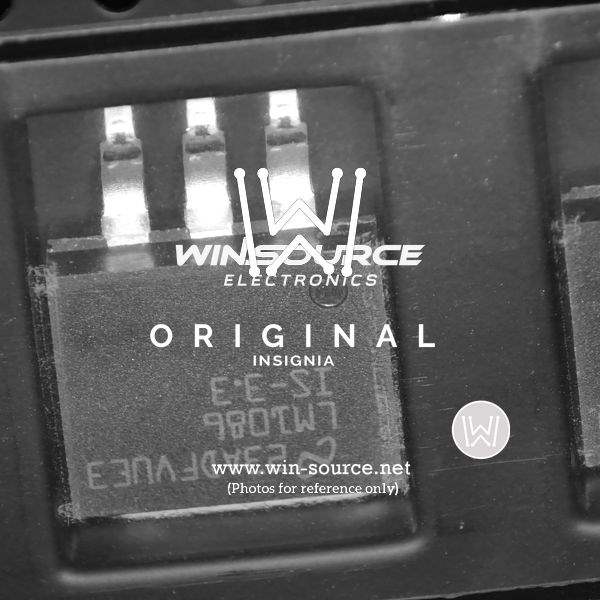

LM1086IS-3.3/NOPB Real Image LM1086IS-3.3/NOPB Real Image1 LM1086IS-3.3/NOPB Real Image2
LM1086IS-3.3/NOPB Real Image LM1086IS-3.3/NOPB Real Image1 LM1086IS-3.3/NOPB Real Image2
Same model may have multiple batches, images only for reference.

LM1086IS-3.3/NOPB

Part No LM1086IS-3.3/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 3.3V 1.5A DDPAK
Datasheet
LM1086IS-3.3/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube/Rail
Status Active
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 27V
Nominal Output Voltage (Min/Fixed) 3.3V
Dropout Voltage-Max 1.5V @ 1.5A
Output Current 1.5A
Operating Supply Current 5mA to 10mA
PSRR 72dB (120Hz)
Control Protection Features Over Current, Over Temperature, Short Circuit
Temperature Range - Operating -40°C to 125°C
Regulator Topology Positive Fixed
Output Voltage 3.3V
Voltage - Dropout (Typical) 1.3V @ 1.5A
Mounting SMD (SMT)
Case / Package DDPAK/TO-263-3
Win Source Part Number 082575-LM1086IS-3.3/NOPB
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Power Management
Ultra Librarian 3D Model Ultra Librarian LM1086IS-3.3/NOPB CAD Model

Description

The LM1086IS-3.3/NOPB is a superior-quality low dropout voltage regulator from the renowned brand, Texas Instruments.

  • Voltage: 3.3V
  • Output Current: Up to 1.5A
  • Dropout Voltage: 1.5V @ maximum output
  • Feature: Low Dropout (LDO)
  • Output: Fixed output voltage
  • Features: Current limiting and thermal protection
  • Compliance: RoHS compliant
