Product Overview: LM1117ILDX-ADJ/NOPB

The LM1117ILDX-ADJ/NOPB is a versatile and reliable adjustable voltage regulator designed and manufactured by Texas Instruments (TI), a leader in semiconductor solutions. This product is part of TI's LM1117 family of low dropout linear regulators that offer a balance of robust performance and cost-effectiveness, making them ideal for a wide range of applications.

Key Features

• Adjustable Output Voltage: The LM1117ILDX-ADJ/NOPB provides an adjustable output voltage range from 1.25V to 13.8V, allowing for flexible use in various circuits where a specific voltage is required.
• Low Dropout Performance: With a low dropout voltage typically at 1.2V at full load, it ensures efficient operation even when the input voltage is close to the output voltage, reducing power loss and improving overall efficiency.
• High Current Capability: The device is capable of delivering up to 800mA of output current, which is suitable for a broad range of applications, from powering small microcontrollers to larger peripheral devices.
• Thermal Shutdown and Current Limit Protection: To ensure reliability and longevity, the LM1117ILDX-ADJ/NOPB features built-in thermal shutdown and current limit protection mechanisms to prevent damage from overheating and overcurrent conditions.

Applications

The LM1117ILDX-ADJ/NOPB is commonly used in a variety of applications including, but not limited to:

• Portable and battery-powered electronics
• Post-regulation for switching supplies
• Low-voltage logic supplies
• Peripheral power

Package and Quality

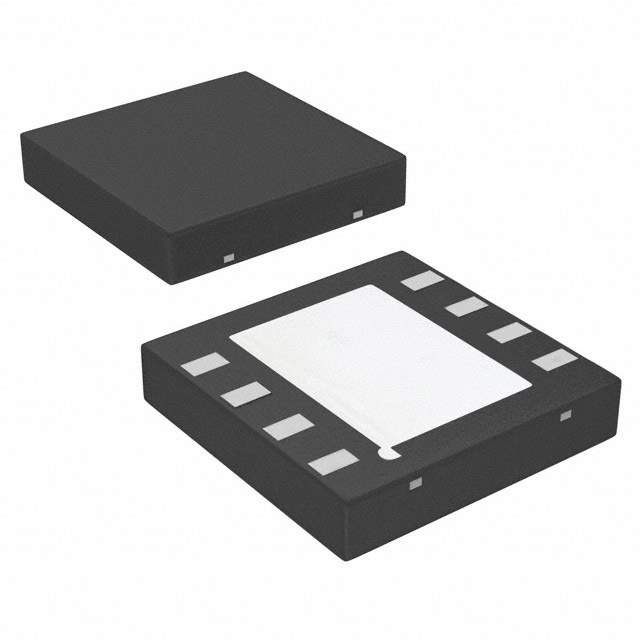

The device comes in a robust, surface-mount WSON-8 package that is designed for optimal thermal performance and space-saving on printed circuit boards. TI's commitment to quality ensures that the LM1117ILDX-ADJ/NOPB meets stringent industry standards for performance and reliability.

Conclusion

Overall, the LM1117ILDX-ADJ/NOPB from Texas Instruments is an excellent choice for designers looking for a dependable and flexible voltage regulation solution. Its combination of adjustable output, low dropout performance, and protection features make it a valuable component in any power management system.
