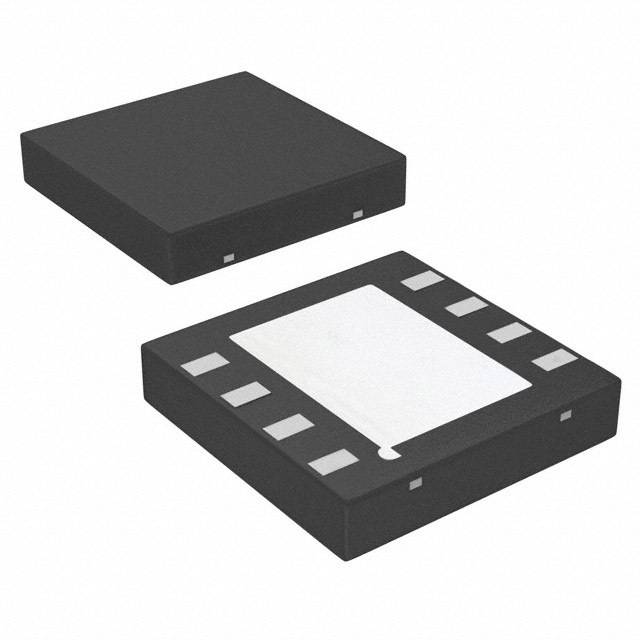

LM1117LD-ADJ/NOPB Texas Instruments
Same model may have multiple batches, images only for reference.

LM1117LD-ADJ/NOPB

Part No LM1117LD-ADJ/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO ADJ 0.8A 8WSON
Datasheet
LM1117LD-ADJ/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 15V
Nominal Output Voltage (Min/Fixed) 1.25V
Maximum Output Voltage 13.8V
Dropout Voltage-Max 1.2V @ 800mA
Output Current 800mA
Operating Supply Current 5mA to 10mA
PSRR 75dB (120Hz)
Control Protection Features Over Current, Over Temperature
Temperature Range - Operating 0°C to 125°C
Regulator Topology Positive Adjustable
Output Voltage 1.25 V to 13.8 V
Voltage - Dropout (Typical) 1.2V @ 800mA
Mounting SMD (SMT)
Case / Package 8-WSON (4x4)
Win Source Part Number 113214-LM1117LD-ADJ/NOPB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM1117LD-ADJ/NOPB CAD Model

Description

The LM1117LD-ADJ/NOPB is a superior-grade adjustable voltage regulator manufactured by Texas Instruments, an industry leader in semiconductor technology.

  • Output Voltage Range: 1.25 V to 13.8 V
  • Output Voltage Accuracy: 1%
  • Output Current: 800mA (maximum)
  • Dropout Voltage: 1.2V @ 800mA
  • Features: Built-in current limit and thermal shutdown
  • Quiescent Current: Low
  • Package: Compact 8-pin LLP
  • Compliance: RoHS compliant
