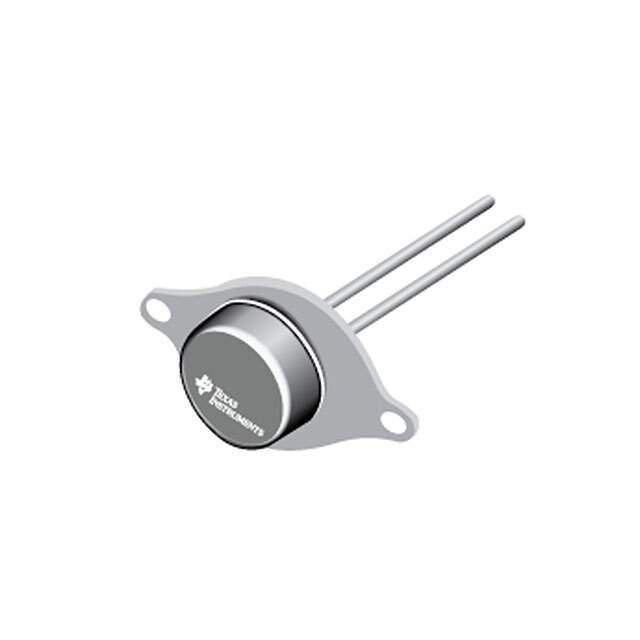

LM140K-12

Part No LM140K-12
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 12V 1A TO3-2
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube/Rail
Status Active
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 27V
Nominal Output Voltage (Min/Fixed) 12V
Dropout Voltage-Max 2V @ 1A
Output Current 1A
Operating Supply Current 6mA
PSRR 72dB (120Hz)
Control Protection Features Over Temperature. Short Circuit
Temperature Range - Operating -55°C to 125°C
Mounting Through Hole
Case / Package TO-3
Win Source Part Number 1052715-LM140K-12
Popularity Medium
Supply and Demand Status Balance

Description

The LM140K-12 is a high-quality voltage regulator designed and manufactured by Texas Instruments. This product is part of the LM140 series, which are monolithic integrated circuits built to provide fixed voltages for a wide range of applications, including local on-card regulation, programmable outputs, and power supplies with a higher level of versatility.

Key Features

  • Output Voltage: The LM140K-12 provides a fixed output voltage of 12V, which is ideal for stable and reliable power supply needs.
  • Current Capacity: It can deliver an output current of up to 1.5A, making it suitable for a variety of moderate to high-power applications.
  • Thermal Overload Protection: The device includes built-in thermal overload protection that safeguards it from damage due to excessive heat.
  • Short Circuit Protection: The LM140K-12 also features short circuit protection, ensuring long-term reliability and safety for both the regulator and the connected components.
  • Safe Operating Area Protection: With this feature, the device is protected from immediate and future damage under extreme conditions.

Applications

The LM140K-12 is versatile and can be used in various applications, such as:

  • Power supplies for personal computers, robotics, and other digital devices
  • Battery chargers and power management systems
  • Automotive electronics, including GPS and entertainment systems
  • Industrial equipment requiring stable voltage supplies

Technical Specifications

Parameter Value
Output Voltage (V) 12
Output Current (A) 1.5
Package Type TO-3
Operating Temperature Range (°C) -55 to +150

With its robust design and reliable performance, the LM140K-12 from Texas Instruments stands as an excellent choice for those in need of a dependable fixed voltage regulator.
