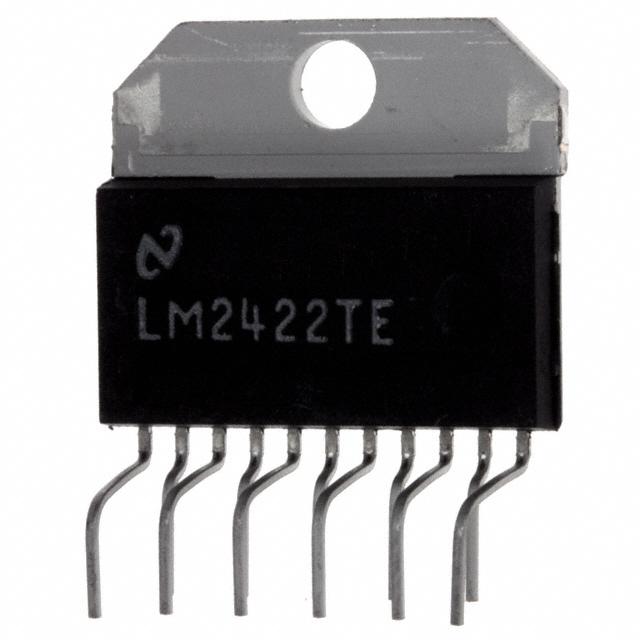

LM2422TE/NOPB Texas Instruments
Same model may have multiple batches, images only for reference.

LM2422TE/NOPB

Part No LM2422TE/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Display Drivers
Description IC DRIVER MONOLITHIC TO-220-11
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube/Rail
Status Obsolete(EOL)
Display Type CRT
Operating Supply Current 45mA
Supply Voltage - Operating 100 V to 230 V
Mounting Through Hole
Case / Package TO-220-11
Win Source Part Number 206308-LM2422TE/NOPB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM2422TE/NOPB CAD Model

Description

The LM2422TE/NOPB is a high-performance, three-channel, high voltage amplifier designed and manufactured by Texas Instruments, one of the world's leading semiconductor companies.

  • Channel Count: Three
  • Application: High-resolution color monitors
  • Gain: Typical 46 dB
  • Peak Output Current: Up to 2.8A
  • Package: 15-lead TO-220 molded plastic power package with a copper lead frame
  • Operating Temperature Range: From 0°C to +70°C
  • Bandwidth: 70 MHz
  • Slew Rate: 2500 V/µs
  • RoHS Compliant: Yes
