Product Overview: LM2585SX-12 by Texas Instruments

The LM2585SX-12 is a versatile and robust step-up (boost) voltage regulator designed and manufactured by Texas Instruments (TI), a leader in semiconductor solutions. This integrated circuit is part of the SIMPLE SWITCHER® family, known for its ease of use and implementation in various power supply designs. The LM2585SX-12 is particularly suitable for applications requiring a fixed output voltage of 12V.

Key Features:

• Output Voltage: The device provides a fixed 12V output, which is ideal for consistent power supply needs across a range of electronic devices and systems.
• High Efficiency: With an efficiency rating that can reach up to 85%, the LM2585SX-12 ensures minimal energy loss during voltage conversion, making it suitable for battery-powered and energy-sensitive applications.
• Switching Frequency: The regulator operates at a switching frequency of 52 kHz, which provides a good balance between efficiency and the size of external components.
• Output Current: It can deliver up to 3A of output current, making it capable of powering a wide array of devices.
• Thermal Shutdown and Current Limit: Built-in thermal shutdown and current limit features protect the device and the system from damage due to overheating and overcurrent conditions.
• Flyback, Forward Converter: The LM2585SX-12 can be used in various topologies, including flyback and forward converter designs, providing design flexibility.

Applications:

• Simple high-voltage power supplies
• Positive to negative converters (Buck-Boost)
• Multiple-output power supplies
• Pre-regulator for linear regulators

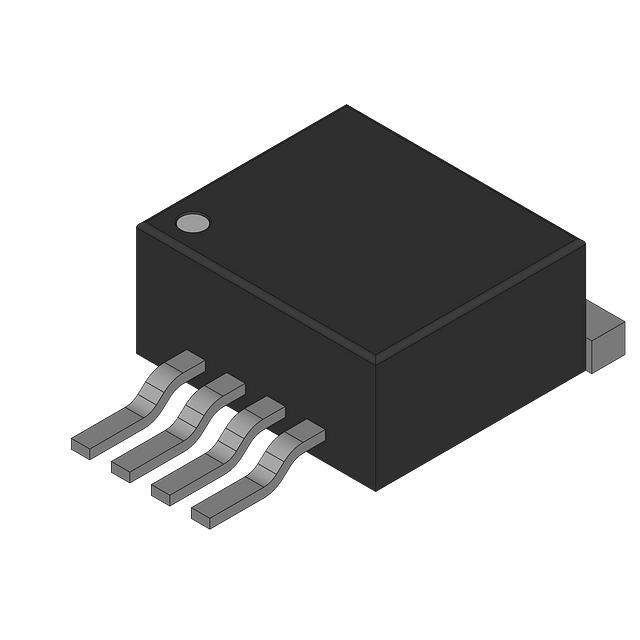

The LM2585SX-12 comes in a TO-263 package, which aids in heat dissipation and allows for a compact design footprint. Its simple external circuitry requirements — needing only a diode, inductor, and a couple of capacitors — make it a go-to choice for quick and reliable power supply designs.

Whether you're a professional engineer or a hobbyist, the LM2585SX-12 from Texas Instruments provides a straightforward solution for your high-voltage power regulation needs with its combination of performance, reliability, and ease of use.
