Product Overview: LM26420YSQ/NOPB

The LM26420YSQ/NOPB from Texas Instruments is a dual 2A, high-efficiency, step-down DC/DC converter designed to meet the rigorous power requirements of modern, compact electronic devices. This power management integrated circuit (PMIC) combines two switching regulators with independent enable functions, offering flexibility and high performance in a small package.

Key Features

• Dual Channel: Two independent 2A channels allow for simultaneous power supply to different parts of the system.
• High Efficiency: With an efficiency of up to 95%, this device ensures minimal power loss and heat generation, extending battery life in portable applications.
• Adjustable Output Voltage: The output voltage is adjustable from 0.8V to 3.6V, accommodating a wide range of power needs.
• Frequency Synchronization: The switching frequency can be synchronized to an external clock between 1.25MHz and 2.5MHz, reducing electromagnetic interference (EMI) and allowing for predictable system behavior.
• Thermal Shutdown: An integrated thermal shutdown feature protects the device and the system from damage due to excessive heat.
• Current Overload Protection: Current overload protection prevents damage from overcurrent conditions, enhancing system reliability.

Applications

The LM26420YSQ/NOPB is suitable for a variety of applications, including but not limited to:

• Portable and battery-powered equipment
• Wireless LAN and DSL modems
• FPGAs and DSPs
• Set-top boxes
• Point-of-load power supplies

Package and Quality

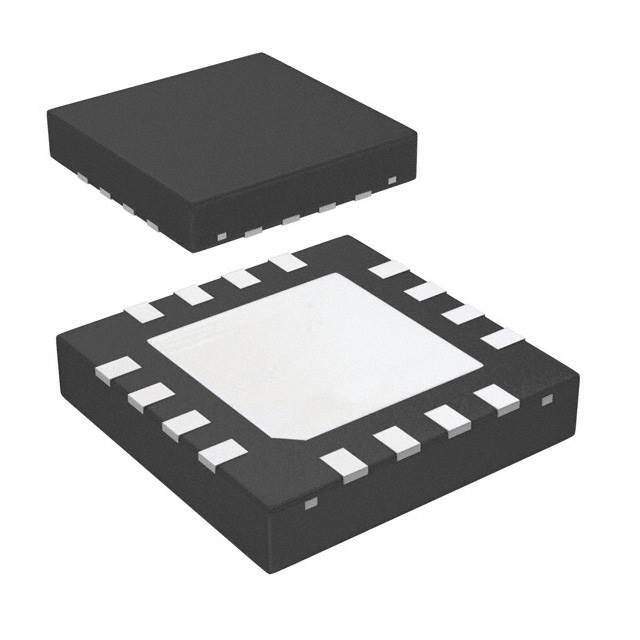

Encased in a compact 16-pin LLP package, the LM26420YSQ/NOPB is designed to occupy minimal space on a printed circuit board, making it ideal for space-constrained applications. Texas Instruments' commitment to quality ensures that this product meets the highest standards, with a design that is both RoHS compliant and lead-free, reflecting an emphasis on environmental responsibility.

Conclusion

The LM26420YSQ/NOPB stands out as a robust, versatile power management solution that can cater to the demanding needs of modern electronics. Its dual-channel configuration, high efficiency, and comprehensive protection features make it an excellent choice for designers looking to optimize power consumption and ensure the reliability of their systems.
