The LM2700LD-ADJ is a high-performance, easy-to-use, step-up DC/DC converter from the reputable manufacturer, Texas Instruments. This versatile device is designed to cater to the needs of modern electronics by providing a reliable power boost function, making it an ideal choice for applications requiring a higher voltage from a lower voltage power supply.

Key Features

• Adjustable Output Voltage: The LM2700LD-ADJ offers an adjustable output that can be set to the desired voltage level to accommodate various applications, ensuring flexibility and adaptability.
• High Efficiency: With an efficiency rate that can reach up to 90%, this step-up converter minimizes energy loss, making it suitable for battery-powered devices where energy conservation is crucial.
• Wide Input Voltage Range: It operates over a broad input voltage range from 2.2V to 14V, allowing it to be used with multiple power sources including single-cell Li-Ion batteries and multi-cell battery configurations.
• Switching Frequency: The device features a high switching frequency of 600 kHz to 1 MHz, which permits the use of smaller external components, thus reducing the overall solution size and cost.
• Thermal Shutdown and Current Limit: Built-in thermal shutdown and current limit protect the device and the subsequent circuitry from damage due to overheating and overcurrent conditions.

Applications

The LM2700LD-ADJ is suitable for a wide range of applications, including but not limited to:

• LCD Displays and LED Lighting
• Portable Media Players
• Wireless and DSL Modems
• Handheld Devices
• GPS Receivers

Package and Reliability

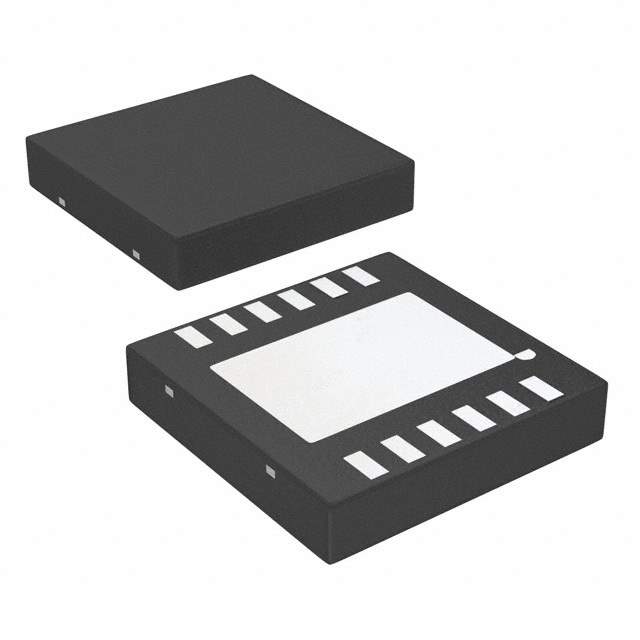

Encased in a small, 14-pin thin SMD package, the LM2700LD-ADJ is designed to occupy minimal board space while providing robust performance. Texas Instruments' commitment to quality ensures that this product meets high reliability standards, making it a trustworthy choice for both commercial and industrial applications.

For more detailed information, including specific voltage settings, load conditions, and application notes, interested parties are encouraged to refer to the official Texas Instruments datasheets and product manuals.
