Texas Instruments LM2830ZSD High-Frequency PWM Step-Down DC/DC Converter

The LM2830ZSD from Texas Instruments is a high-efficiency, PWM (Pulse Width Modulation) step-down DC/DC converter. Designed for a range of applications, this compact converter is ideal for portable devices due to its small footprint and high energy efficiency. With the ability to convert input voltages ranging from 3V to 5.5V down to a lower, user-adjustable output voltage, it provides design flexibility for a multitude of low-voltage circuits.

One of the standout features of the LM2830ZSD is its high switching frequency of up to 3 MHz, which allows for the use of tiny surface-mount components, reducing the overall solution size and saving valuable board space. This high frequency, combined with a current mode control scheme, ensures low output voltage ripple and a fast transient response, vital for powering sensitive electronic devices.

The device is designed with efficiency in mind, featuring a low RDS(ON) integrated switch, which minimizes conduction losses. Additionally, the LM2830ZSD offers a shutdown mode that significantly reduces power consumption when the device is not in use, making it an excellent choice for battery-operated equipment. The thermal shutdown and current limit protections safeguard the device and the system from excessive temperature and current conditions.

Key features of the LM2830ZSD include:

• Adjustable output voltage down to 1.24V
• Up to 3 MHz switching frequency
• High efficiency due to low RDS(ON) switch
• Shutdown mode for reduced power consumption
• Thermal shutdown and current limit protection

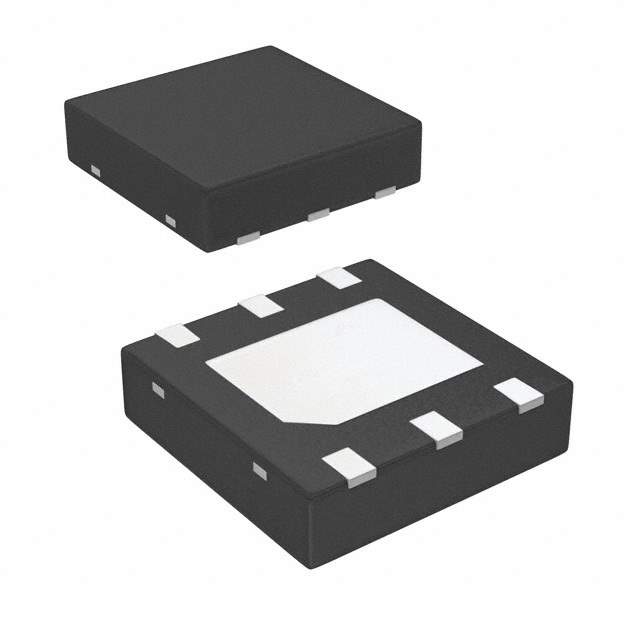

• Available in a small LLP-10 package

Whether it's for powering microprocessors, FPGAs, or other sensitive electronics, the LM2830ZSD is a versatile and reliable choice that meets the stringent requirements of modern portable designs. Its combination of high-frequency operation, adjustable output, and protective features make it a robust solution for designers looking to optimize power management in their products.

For detailed specifications, application circuits, and additional resources, designers are encouraged to consult the LM2830ZSD datasheet available on the Texas Instruments website.
