The LM2831XMFX from Texas Instruments is a highly efficient, space-conscious step-down DC/DC regulator designed to meet the needs of modern compact electronic devices. This regulator is capable of driving a 1.5A load with excellent line and load regulation.

Key Features

• High Efficiency: The LM2831XMFX boasts a high efficiency that peaks at 90%, ensuring minimal heat generation and longer battery life in portable applications.
• Adjustable Output Voltage: This versatile regulator allows for an adjustable output voltage that can be set from 1.25V to 20V with the use of external resistors, catering to a wide range of application requirements.
• High-Frequency Operation: With a switching frequency of 1.6 MHz, the LM2831XMFX allows for the use of small surface-mount inductors and capacitors, reducing the overall solution size and providing a compact power management solution.
• Low-Noise Output: The device is designed to minimize noise, making it suitable for noise-sensitive applications such as RF and precision analog circuits.
• Protection Features: It incorporates built-in thermal shutdown, current limiting, and under-voltage lockout to protect the device and the load under abnormal operating conditions.

Applications

The LM2831XMFX is ideal for a variety of applications, including but not limited to:

• Portable and wireless devices
• Point-of-load power supplies
• Networking and telecommunications equipment
• Consumer electronics

Package and Availability

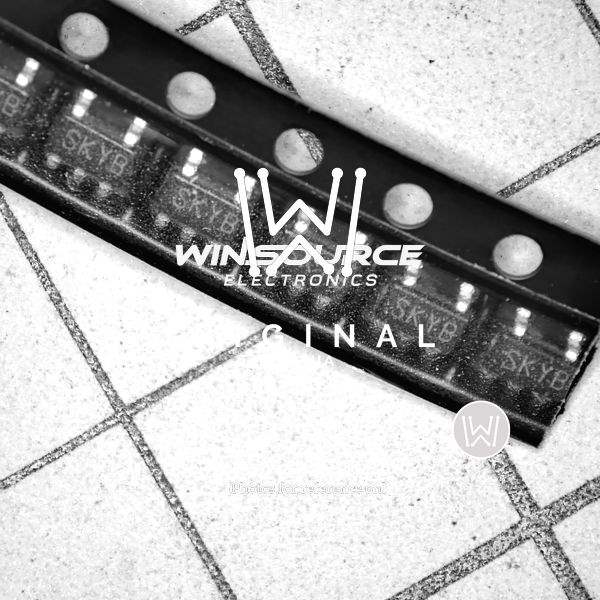

The regulator is available in a small 6-pin SOT-23 package, which is suitable for automated assembly processes and helps reduce the footprint on printed circuit boards. The LM2831XMFX is part of Texas Instruments' reliable power management solutions and is widely available through various distributors and online retailers.

Conclusion

The LM2831XMFX from Texas Instruments represents a strong combination of efficiency, versatility, and compactness, making it an excellent choice for designers looking to optimize power management in their next-generation electronic devices.
