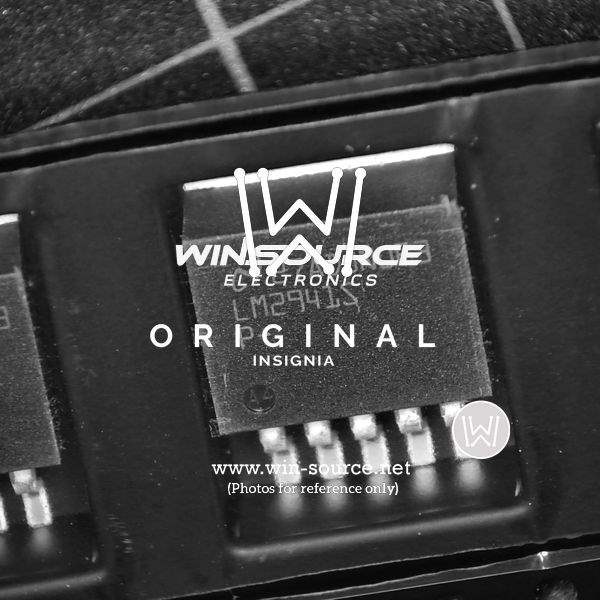

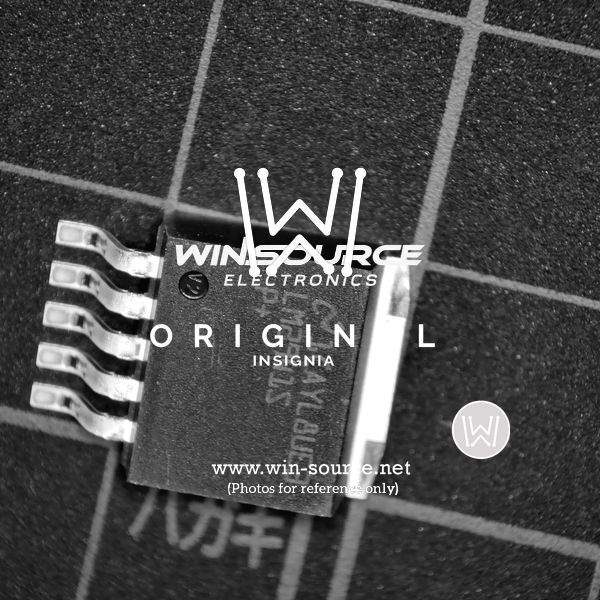

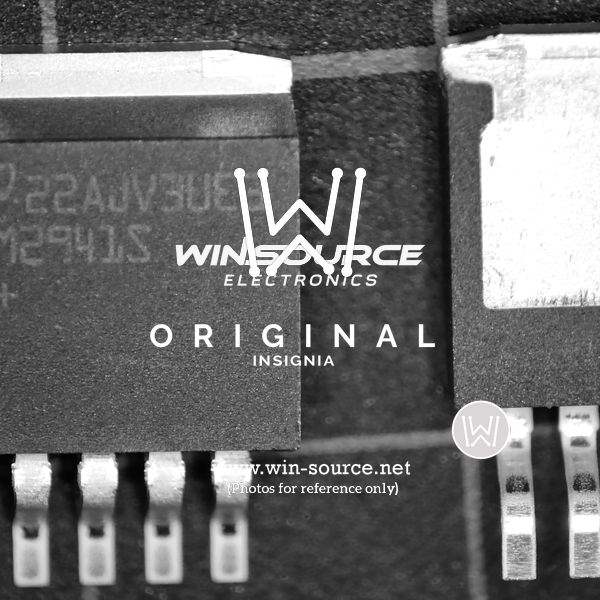

LM2941S/NOPB Real Image LM2941S/NOPB Real Image1 LM2941S/NOPB Real Image2 LM2941S/NOPB Real Image3
Same model may have multiple batches, images only for reference.
LM2941S/NOPB Real Image LM2941S/NOPB Real Image1 LM2941S/NOPB Real Image2 LM2941S/NOPB Real Image3
LM2941S/NOPB Real Image LM2941S/NOPB Real Image1 LM2941S/NOPB Real Image2 LM2941S/NOPB Real Image3
Same model may have multiple batches, images only for reference.

LM2941S/NOPB

Part No LM2941S/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO ADJ 1A DDPAK
Datasheet
LM2941S/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube/Rail
Status Active
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 26V
Nominal Output Voltage (Min/Fixed) 5V
Maximum Output Voltage 20V
Dropout Voltage-Max 1V @ 1A
Output Current 1A
Operating Supply Current 10mA to 15mA
Control Features Enable
Protection Features Over Temperature, Reverse Polarity, Short Circuit
Temperature Range - Operating -40°C to 125°C
Regulator Topology Positive Adjustable
Output Voltage 5 V to 20 V
Voltage - Dropout (Typical) 0.5V @ 1A
Mounting SMD (SMT)
Case / Package DDPAK/TO-263-5
Win Source Part Number 071178-LM2941S/NOPB
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LM2941S/NOPB CAD Model

Description

The LM2941S/NOPB is a robust and high-performing adjustable voltage regulator designed and manufactured by Texas Instruments, a global leader in semiconductor technology.

  • Adjustable Output Voltage: From 5V to 20V
  • Input Voltage Range: Up to 26V
  • Low Dropout Voltage: 0.5V @ full load
  • Quiescent Current: 10mA
