The LM3503ITL-25/NOPB, a high-performance integrated circuit from Texas Instruments, is designed to meet the power management demands of modern portable devices. This efficient, fixed-frequency, step-up DC-DC converter is ideal for driving white LEDs in a series connection, commonly used for backlighting in small-to-medium-sized LCD displays.

Key Features

• Output Voltage: The device provides a fixed output voltage of 25V, ensuring consistent illumination across all LEDs in the series.
• High Efficiency: It operates with high efficiency, which is essential for battery-powered applications, prolonging device run-time.
• Adjustable Brightness: The LM3503ITL-25/NOPB supports a wide range of brightness levels, adjustable via an external pulse width modulation (PWM) signal, providing flexibility in display brightness control.
• Thermal Shutdown: A built-in thermal shutdown feature protects the device from overheating, enhancing the reliability and longevity of the application.
• Over-Voltage Protection: The integrated over-voltage protection safeguards the LEDs and the circuit from potential damage due to unexpected voltage spikes.

Applications

With its robust feature set, the LM3503ITL-25/NOPB is suitable for a variety of applications, including:

• Smartphone and tablet displays
• Portable media players
• GPS devices
• Other handheld devices requiring high-efficiency backlighting

Quality and Reliability

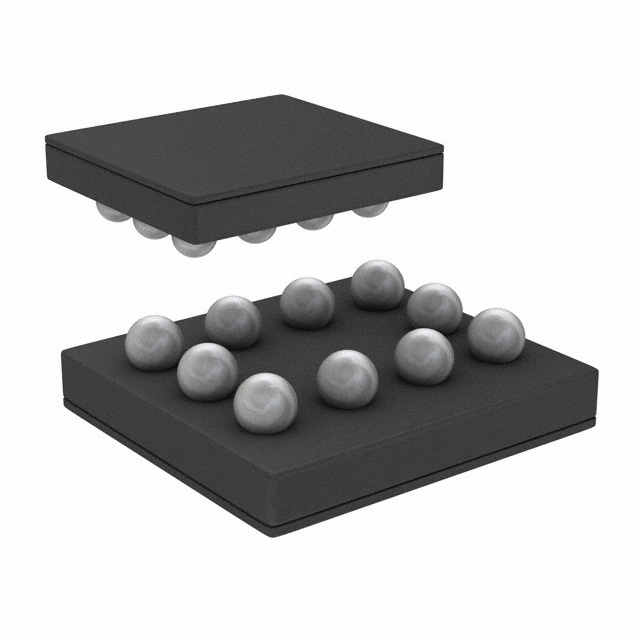

The device is provided in a compact, leadless 9-bump micro SMD package, which is ideal for space-constrained applications. Texas Instruments' commitment to quality ensures that the LM3503ITL-25/NOPB adheres to strict manufacturing standards, providing reliable performance in a wide range of operating conditions. The "NOPB" suffix indicates that the product is lead-free (RoHS compliant), reflecting TI's dedication to environmental responsibility.

Conclusion

The LM3503ITL-25/NOPB from Texas Instruments is a versatile and efficient solution for LED backlighting applications. Its combination of fixed output voltage, adjustable brightness, and protection features make it a top choice for designers seeking a reliable and high-quality component for their power management needs.
