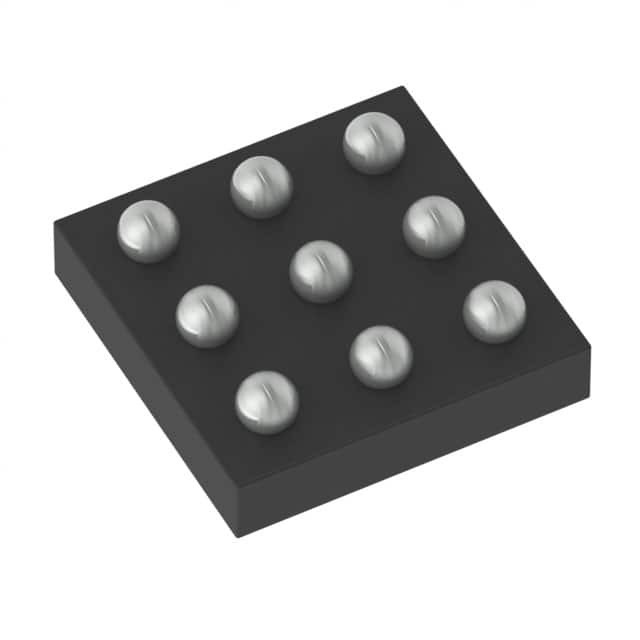

The LM3638A1YFDR is a high-efficiency, feature-rich, dual-string white LED driver designed to enhance the visual experience for mobile devices. Manufactured by Texas Instruments, a leader in semiconductor solutions, this driver is specifically tailored to provide consistent backlighting for small-format LCD displays used in smartphones, tablets, and other portable electronics.

Key Features

• Adjustable Brightness: The LM3638A1YFDR supports a wide range of brightness levels, enabling precise control over the backlighting intensity for optimal viewing in various lighting conditions.
• Dual LED String Support: With its capability to drive two strings of white LEDs, the device ensures uniform illumination across the display, contributing to a better user experience.
• High Efficiency: The device boasts a high power-conversion efficiency, which not only reduces energy consumption but also minimizes heat generation, thereby extending the battery life of portable devices.
• Flexible Power Management: It features an integrated boost converter with a 2.7V to 5.5V input voltage range, allowing it to operate efficiently across various power states.
• Programmable Dimming: The LM3638A1YFDR includes a programmable dimming function, which can be configured via an I2C-compatible interface, offering smooth and flicker-free transitions between brightness levels.

Applications

This LED driver is ideal for a multitude of applications where high-quality backlighting is essential. It is commonly used in:

• Smartphones and tablets
• Personal navigation devices
• Portable media players

Technical Specifications

The LM3638A1YFDR comes in a compact WSON package, making it suitable for space-constrained applications. It operates over a -40°C to +85°C temperature range, ensuring reliability under varying environmental conditions.

Conclusion

With its combination of dual-string driving capability, high efficiency, and advanced programmability, the LM3638A1YFDR from Texas Instruments stands out as a versatile solution for powering the backlighting of small-format LCD displays. Its integration into a device's design can significantly enhance the end-user's visual experience while optimizing power usage.
