The LM5010SD from Texas Instruments is a high-performance step-down switching regulator designed to manage power supply requirements for a variety of applications. This device is capable of driving a 1A load with excellent line and load regulation. The LM5010SD incorporates all of the features necessary to implement a cost-effective and efficient buck power converter.

With an input voltage range of 6V to 75V, it is suitable for a wide array of applications, from automotive to industrial. The high-voltage capabilities make it ideal for systems that experience large voltage transients, such as start-stop technology in vehicles and industrial power supplies.

Key Features:

• Adjustable Output Voltage: The output voltage can be set to a desired level using external resistors, making it highly versatile for different design needs.
• High Efficiency: Integrated features such as a 100 mΩ N-Channel MOSFET switch contribute to high efficiency, reducing thermal stress and enhancing system reliability.
• Frequency Adjustability: The switching frequency is adjustable up to 1 MHz, allowing designers to optimize the size of the external components and the performance of the regulator.
• Thermal Shutdown: An internal thermal shutdown mechanism protects the device in extreme operating conditions.
• Current Mode Control: This feature provides improved transient response and simplified loop compensation.

The LM5010SD also includes additional protective features such as under-voltage lockout, over-voltage protection, and cycle-by-cycle current limit. These features ensure the longevity and stability of both the regulator and the overall system it powers.

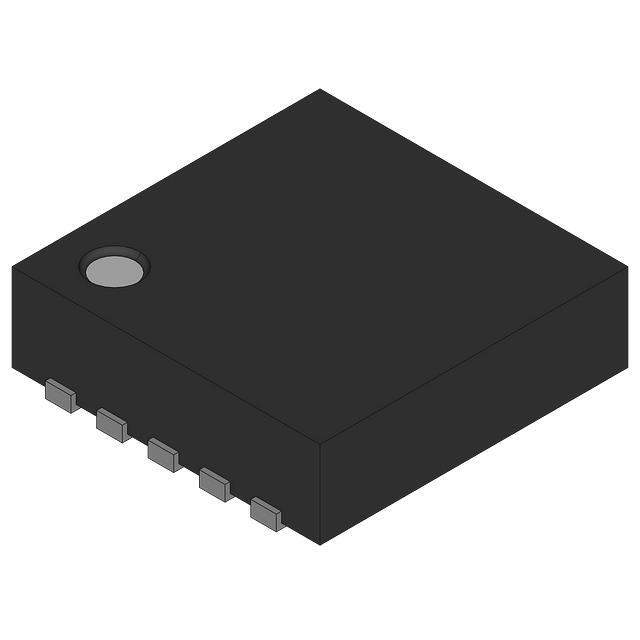

Encased in a compact 10-pin WSON package, the LM5010SD is optimized for space-constrained applications. Its small footprint and high integration level make it a prime choice for designers looking to reduce the size of their power supply without sacrificing performance.

Whether you are designing power supplies for automotive electronics, industrial systems, or portable devices, the LM5010SD offers a robust, efficient, and flexible solution to meet your step-down voltage regulation needs.
