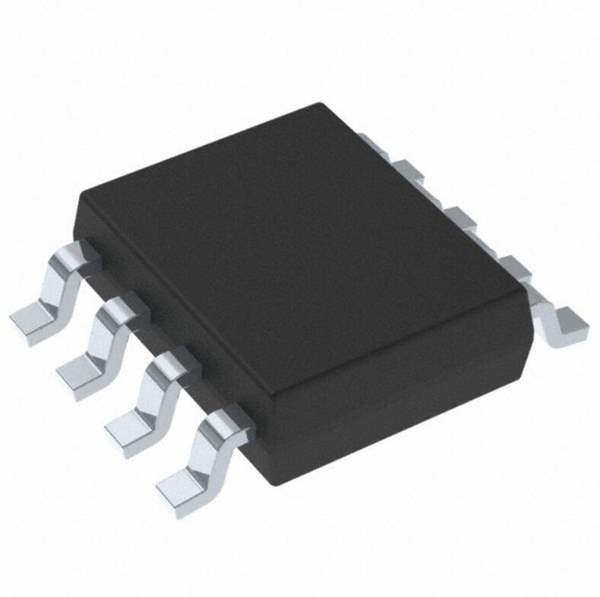

The LM5012DDAR from Texas Instruments is a high-performance, step-down voltage regulator designed for a wide range of applications. This efficient power management integrated circuit (IC) is capable of driving a 0.5A load with excellent line and load regulation.

Key Features

• Input Voltage Range: The LM5012DDAR operates over a wide input voltage range from 4.5V to 75V, making it suitable for automotive, industrial, and telecommunication applications.
• Output Voltage: It provides an adjustable output voltage that can be set from 1.225V to 50V, ensuring flexibility across various applications.
• Switching Frequency: The device features a fixed switching frequency of 350 kHz, which allows for a good balance between efficiency and external component size.
• Thermal Performance: The regulator is offered in a thermally enhanced 8-pin WSON package, ensuring reliable operation even at higher temperatures.
• Protection Features: It includes a variety of protection features such as thermal shutdown, current limit, and under-voltage lockout (UVLO), enhancing the safety and reliability of the system.

Applications

The LM5012DDAR is ideal for a range of applications, including:

• Automotive systems
• Power modules
• Industrial controls
• Telecom infrastructure
• Distributed power systems

Additional Information

With its advanced features and robust design, the LM5012DDAR voltage regulator is a reliable solution for managing power requirements in complex electronic systems. Its high-efficiency operation reduces energy consumption, while its small footprint and minimal external component requirements make it an excellent choice for space-constrained applications. For detailed specifications, application notes, and design resources, visit the Texas Instruments website or contact their support team.
