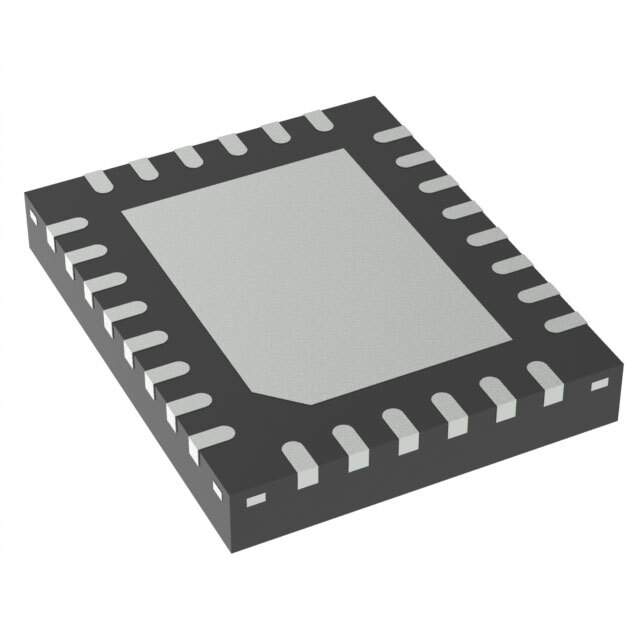

Product Overview: Texas Instruments LM5176RHFR

The LM5176RHFR from Texas Instruments is a versatile and efficient power management integrated circuit designed for a wide range of applications. This device is a part of the LM5176 series, which is known for its exceptional performance in managing power supplies with its buck-boost voltage regulation capabilities.

Key Features

• Wide Input Voltage Range: The LM5176RHFR operates over a broad input voltage range of 4.5V to 55V, making it suitable for a variety of power sources, including unstable and fluctuating voltages.
• Integrated MOSFETs: The device incorporates high-side and low-side N-channel MOSFETs, which facilitates efficient power conversion and reduces external component count.
• Adjustable Output Voltage: It provides an adjustable output voltage that can be set with a simple external resistor divider, allowing for a high level of flexibility to meet specific design requirements.
• High Efficiency: With its advanced control and switching techniques, the LM5176RHFR achieves high conversion efficiency, minimizing energy loss and heat generation.
• Programmable Switching Frequency: The switching frequency is programmable from 100kHz to 750kHz, which allows designers to optimize the size of external components and the performance of the power supply.
• Thermal Protection: The IC includes thermal shutdown protection to safeguard the device under high-temperature conditions.

Applications

The LM5176RHFR is suitable for a wide range of applications that require efficient power regulation, such as:

• Industrial power supplies
• Automotive power systems
• Telecommunications equipment
• Portable devices with variable power sources
• Uninterruptible power supplies (UPS)

With its robust design and comprehensive feature set, the LM5176RHFR is a reliable choice for designers looking to create sophisticated power supply systems. Its ability to perform under a wide range of conditions and its user-configurable options make it a highly adaptable solution for complex electronic designs.

For detailed technical specifications, application notes, and support resources, please visit the Texas Instruments website or consult the LM5176 datasheet.
