Product Overview: Texas Instruments LM60430DRPKR

The LM60430DRPKR is a high-performance, step-down DC/DC converter designed and manufactured by Texas Instruments (TI), a leader in semiconductor solutions. This efficient power management integrated circuit (PMIC) is ideal for a wide range of applications, from automotive to industrial, and is engineered to provide a stable and reliable power supply to sensitive electronic components.

Featuring an input voltage range of 4V to 36V, the LM60430DRPKR is capable of supporting a variety of power sources, including multi-cell batteries, 12V to 24V power rails, and other fluctuating power supplies. It delivers an adjustable output voltage that can be set from 0.8V to VIN with an external resistor divider, providing the flexibility needed to meet the requirements of various downstream circuits.

With an impressive output current capability of up to 3A, this regulator can handle high-power demands while maintaining high efficiency, thanks to its advanced switching architecture. The device's efficiency is further enhanced by its low RDS(on) internal MOSFETs, which reduce conduction losses, and by its pulse frequency modulation (PFM) mode, which improves efficiency at light loads.

One of the key features of the LM60430DRPKR is its robust protection circuitry. It includes under-voltage lockout (UVLO), thermal shutdown, and over-current protection, ensuring the safety and longevity of both the power supply and the powered device. Additionally, the device offers programmable soft-start to minimize inrush current during startup, which can be critical in preventing system voltage sags and ensuring a smooth power-up sequence.

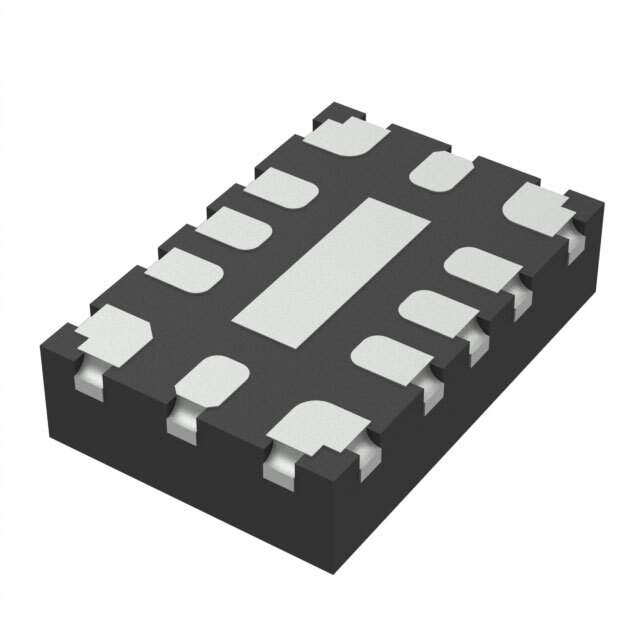

The LM60430DRPKR comes in a compact 3.5mm x 3.5mm VQFN-HR package, making it suitable for space-constrained applications. Its small footprint, combined with minimal external components, allows for a cost-effective and straightforward design, facilitating quick and easy integration into a wide range of products.

Overall, the Texas Instruments LM60430DRPKR is a versatile, efficient, and reliable solution for modern power supply requirements, delivering high performance in a compact package. Its advanced features and protections make it a top choice for designers looking to enhance the power management capabilities of their electronic systems.
