Same model may have multiple batches, images only for reference.

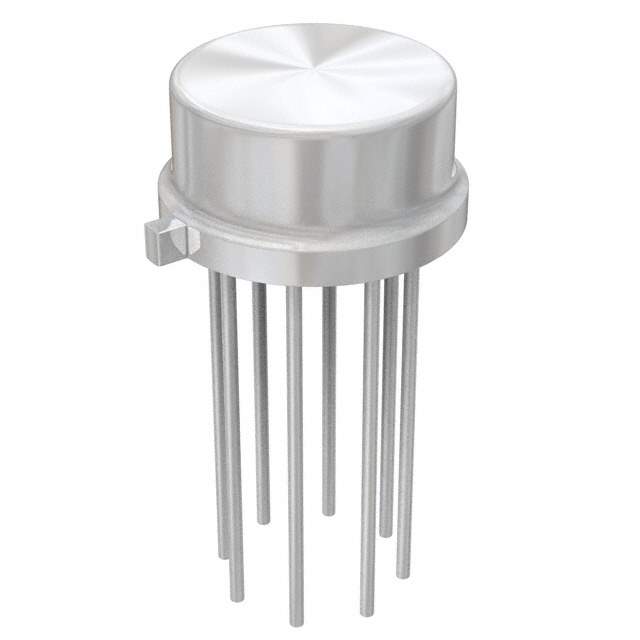

LM723CH/NOPB Real Image
Same model may have multiple batches, images only for reference.

LM723CH/NOPB

Part No LM723CH/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO ADJ 0.15A TO100-10
Datasheet
LM723CH/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube/Rail
Status Active
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 40V
Nominal Output Voltage (Min/Fixed) 2V
Maximum Output Voltage 37V
Output Current 150mA
PSRR 86dB to 74dB (50Hz to 10kHz)
Control Features Current Limit, Frequency Control
Protection Features Short Circuit
Temperature Range - Operating 0°C to 70°C
Regulator Topology Positive Adjustable
Output Voltage 2 V to 37 V
Mounting Through Hole
Case / Package TO-100-10
Win Source Part Number 127436-LM723CH/NOPB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM723CH/NOPB CAD Model

Description

The LM723CH/NOPB from Texas Instruments is a high-precision voltage regulator with an output voltage range of 2V to 37V and an output current of up to 150mA without an external pass transistor.

  • Features: Built-in current limiter, thermal shutdown, short-circuit protection, and safe-area compensation. It operates over a wide temperature range (-55°C to +125°C).
  • Package: 14-pin hermetic ceramic dual-in-line (CERDIP), RoHS compliant.

It offers a broad range of voltage regulation capabilities with robust protection features, ensuring reliability and safety.
