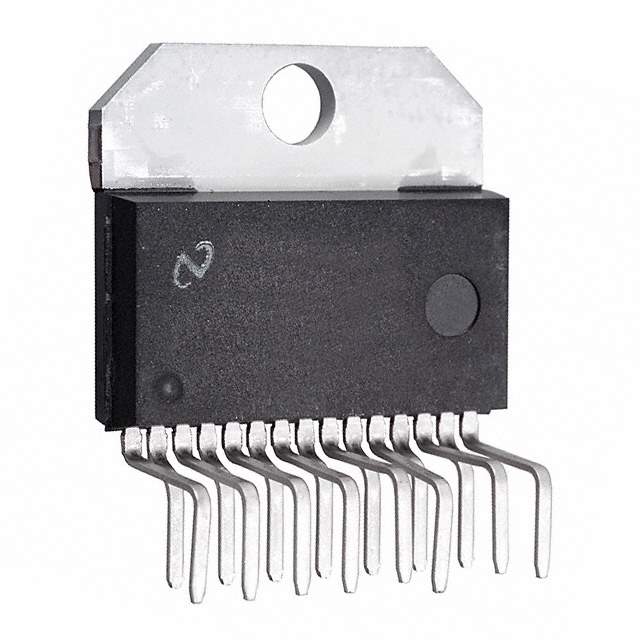

LMD18245T/NOPB Texas Instruments LMD18245T/NOPB Real Image LMD18245T/NOPB label picture
Same model may have multiple batches, images only for reference.
LMD18245T/NOPB Texas Instruments LMD18245T/NOPB Real Image LMD18245T/NOPB label picture
LMD18245T/NOPB Texas Instruments LMD18245T/NOPB Real Image LMD18245T/NOPB label picture
Same model may have multiple batches, images only for reference.

LMD18245T/NOPB

Part No LMD18245T/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Motor Drivers, Controllers
Description IC MOTOR DRIVER PAR TO220-15
Datasheet
LMD18245T/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube/Rail
Status Active
Motor Type - Stepper Bipolar
Motor Type - AC, DC Brushed DC
Purpose Driver - Fully Integrated, Control and Power Stage
Technology Bi-CMOS, DMOS
Step Resolution 1, 1/2
Applications General Purpose
Output Current 3A
Supply Voltage - Operating 12 V to 55 V
Voltage - Load 12 V to 55 V
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting Through Hole
Case / Package TO-220-15
Win Source Part Number 019518-LMD18245T/NOPB
Family Name LMD18245
Introduction Date April 01, 1998
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2027
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LMD18245T/NOPB CAD Model

Description

The LMD18245T/NOPB is a highly efficient and reliable component manufactured by Texas Instruments, designed for motion control applications. This full-bridge, pulse-width modulated (PWM) motor driver is an integral part of a wide range of applications, including robotics, industrial motor control, and automated systems.

  • Functionality: Drives both windings of a bipolar stepper motor or bidirectionally control two DC motors
  • Continuous Output Current: 3A
  • Operating Voltage Range: 12V to 55V
  • Thermal Shutdown Capability: Automatically turns off output transistors when the chip's temperature exceeds a pre-set limit, preventing overheating damage
  • Advanced Protection Features: Current limit and power output stage protection
  • Packaging: 24-pin PowerDIP, thermally enhanced, RoHS compliant
