The LMH6642MFX from Texas Instruments is a high-performance, low-power operational amplifier that brings together a blend of features to suit a wide range of applications. This op-amp is designed to offer a good balance between speed, power consumption, and voltage range, making it a versatile choice for designers.

Key Features

• High Speed: With a 130MHz bandwidth, the LMH6642MFX is capable of handling high-speed signals, making it suitable for video, communications, and test equipment applications.
• Low Power Consumption: Despite its high-speed capabilities, this amplifier maintains a low power consumption, with a supply current of just 2.7mA. This feature is particularly beneficial for battery-powered and portable devices where power efficiency is crucial.
• Rail-to-Rail Output: The rail-to-rail output stage allows the output to swing within millivolts of the supply rails, maximizing the dynamic range in low-voltage applications.
• Wide Supply Voltage Range: Operating from a supply voltage range of 2.7V to 12V, the LMH6642MFX is flexible for use in both single-supply and split-supply configurations, accommodating a variety of system requirements.
• Unity-Gain Stability: This operational amplifier is stable for gains as low as +1, which is ideal for buffer and voltage follower configurations.

Applications

The LMH6642MFX is well-suited for a range of applications, including:

• Portable and battery-powered equipment
• ADC buffer amplifiers
• Active filters
• Video and RF amplification
• Test and measurement systems

Package and Quality

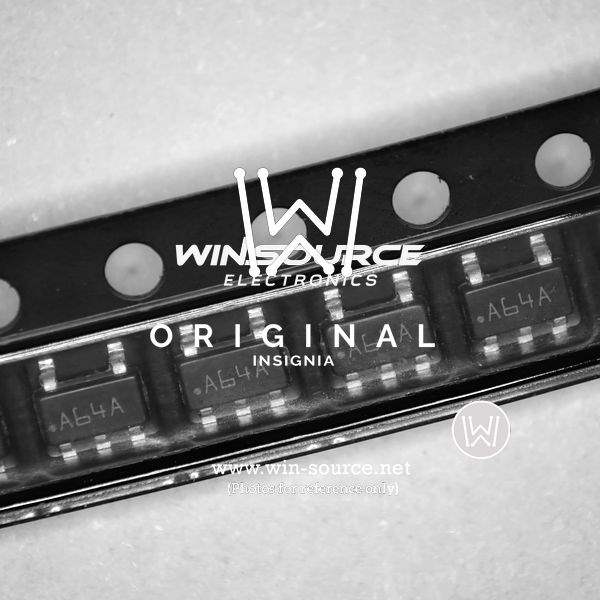

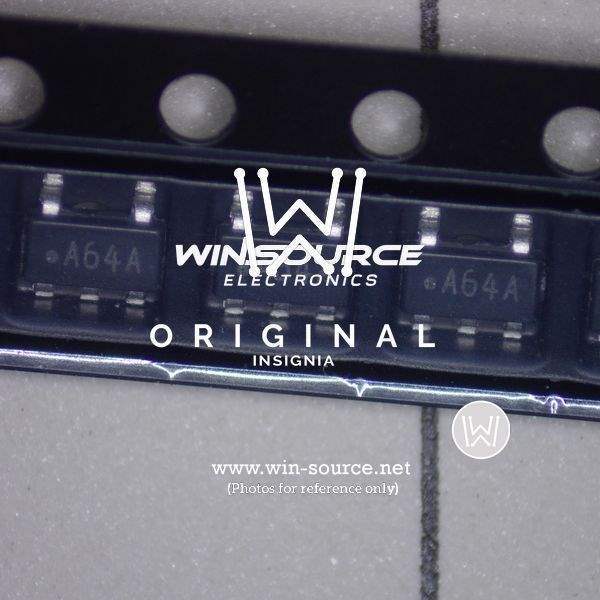

Encased in a 5-pin SOT-23 package, the LMH6642MFX is designed for space-constrained applications. Texas Instruments is known for its commitment to quality, and this product is no exception. It is manufactured to high standards, ensuring reliability and performance consistency.

Whether you are designing a sophisticated communication system or a simple sensor interface, the LMH6642MFX provides the precision and reliability needed for your application.
