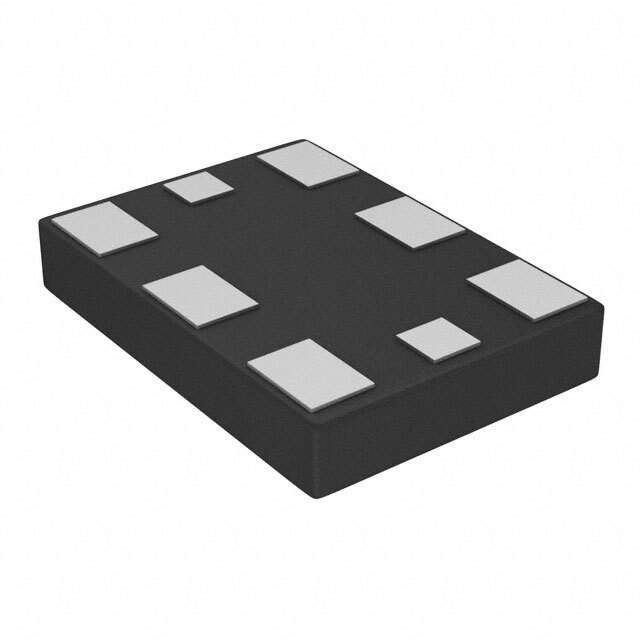

The LMK61E2-SIAR is a high-performance, low-noise programmable oscillator from Texas Instruments, designed to meet the stringent clocking requirements of modern communication, industrial, and computing applications. This device is part of the LMK61xx family of ultra-low jitter programmable oscillators that offer excellent frequency flexibility and stability.

Key Features

• Frequency Range: The LMK61E2-SIAR oscillator supports a wide frequency range, allowing users to program the output frequency with fine granularity.
• Low Jitter Performance: With its advanced design, the LMK61E2-SIAR achieves ultra-low jitter performance, making it suitable for high-speed digital systems that require precise timing.
• Supply Voltage: The device operates on a supply voltage of 3.3V, which is common in digital systems, simplifying the power supply design.
• Output Format: It offers LVDS (Low-Voltage Differential Signaling) output, providing a differential signal that minimizes electromagnetic interference and supports high data rates.
• Programmability: The device features an I2C interface for programming the output frequency, phase, and other operational parameters, offering designers the flexibility to tailor the clock to their specific needs.
• Temperature Stability: The oscillator maintains its performance across a broad temperature range, ensuring reliable operation in various environments.

Applications

The LMK61E2-SIAR is ideal for several applications, including but not limited to:

• Networking equipment (routers, switches, servers)
• Data storage and data center infrastructure
• Wireless infrastructure (base stations, backhaul)
• Test and measurement equipment
• High-performance computing and FPGA clocking

With its programmability and excellent performance, the LMK61E2-SIAR provides a versatile solution for designers looking to optimize their clocking architecture while reducing design complexity and time to market.
