The LP2951D is a versatile, low-power voltage regulator with an impressive array of features, designed and manufactured by Texas Instruments (TI), a global leader in semiconductor design and production. This regulator is particularly suited for battery-powered applications due to its low power consumption and stable output, even with low input voltages.

Key Features

• Adjustable Output: The LP2951D can be programmed from 1.24V up to 29V, which allows for a wide range of applications and flexibility in design.
• Low Dropout Voltage: It has a low dropout voltage typically 380mV at 100 mA load, ensuring efficient operation even when the input voltage is close to the output voltage.
• Low Quiescent Current: The device exhibits a very low quiescent current, approximately 75 µA with a 100 µA load, which is ideal for battery-operated devices.
• Power Supply Rejection Ratio (PSRR): With a high PSRR, the LP2951D provides stable output despite fluctuations in the input voltage, which is critical for sensitive electronics.
• Error Flag Warning: An error flag output warns of a low output voltage, often due to falling input voltage or excessive load conditions, providing an additional layer of protection for the connected components.
• Shutdown Capability: The regulator includes a shutdown feature that reduces the supply current to less than 1 µA, further conserving power when the device is not in active use.

Applications

The LP2951D is an ideal choice for a multitude of applications, including but not limited to:

• Battery-powered equipment
• Portable consumer electronics
• Automotive electronics
• Embedded systems
• Power supply for microcontrollers and analog circuits

Package and Quality

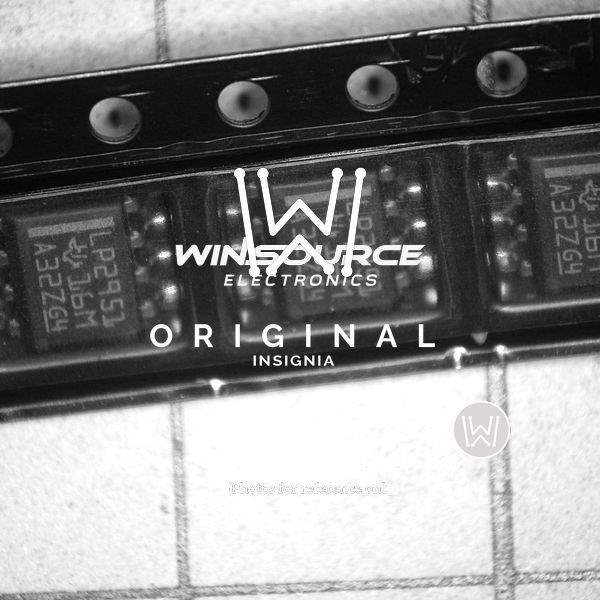

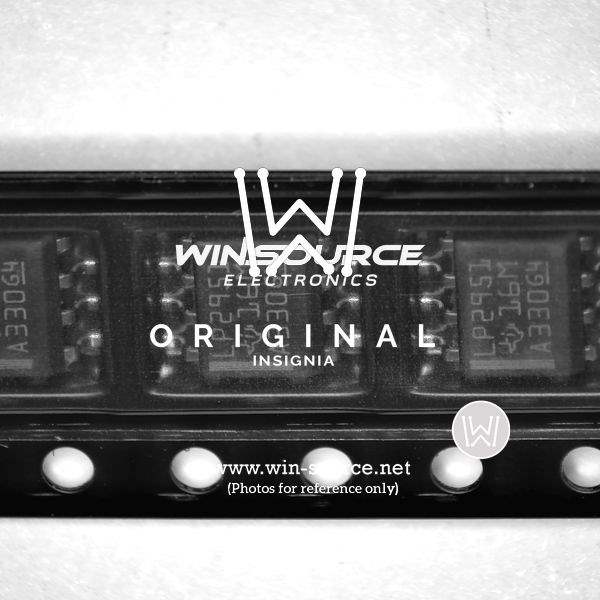

The LP2951D is offered in an 8-pin SOIC package, which is compact and suitable for space-constrained applications. Texas Instruments is known for its commitment to quality, and this product is no exception. It is designed to meet the rigorous standards of the industry, ensuring reliability and performance.
