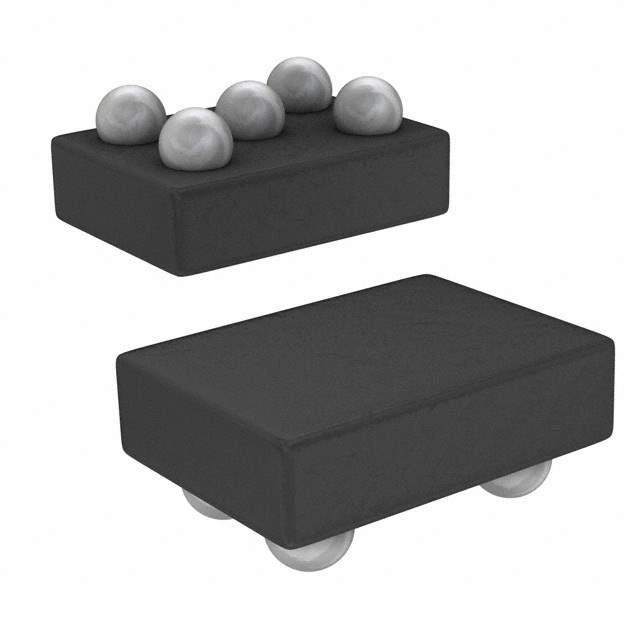

LP2985AIBPX-2.5 Real Image
Same model may have multiple batches, images only for reference.

LP2985AIBPX-2.5

Part No LP2985AIBPX-2.5
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 2.5V 0.15A 5USMD
Datasheet
LP2985AIBPX-2.5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 16V
Nominal Output Voltage (Min/Fixed) 2.5V
Dropout Voltage-Max 0.58V @ 150mA
Output Current 150mA
Operating Supply Current 95μA to 2.5mA
PSRR 45dB (1kHz)
Control Features Enable
Protection Features Over Current, Over Temperature, Short Circuit
Temperature Range - Operating -40°C to 125°C
Regulator Topology Positive Fixed
Output Voltage 2.5V
Voltage - Dropout (Typical) 0.28V @ 150mA
Mounting SMD (SMT)
Case / Package 5-uSMD
Win Source Part Number 071773-LP2985AIBPX-2.5
Ultra Librarian 3D Model Ultra Librarian LP2985AIBPX-2.5 CAD Model

Description

The LP2985AIBPX-2.5 is a high-performance, low noise micro-power LDO voltage regulator manufactured by Texas Instruments. This device is designed to meet the rigorous requirements of portable RF electronics, offering a unique combination of ultra-low noise, high PSRR, low quiescent current, and low dropout voltage.

  • Output Voltage: 2.5V
  • Input Voltage Range: 2.5 to 16 volts
  • Load Current: 150mA
  • Applications: Mobile phones, handheld GPS devices, and other portable RF devices
  • Features: Low noise, high PSRR, low dropout voltage, shutdown mode, overcurrent protection, thermal shutdown protection, RoHS compliant
  • Package: 5-pin SOT-23
