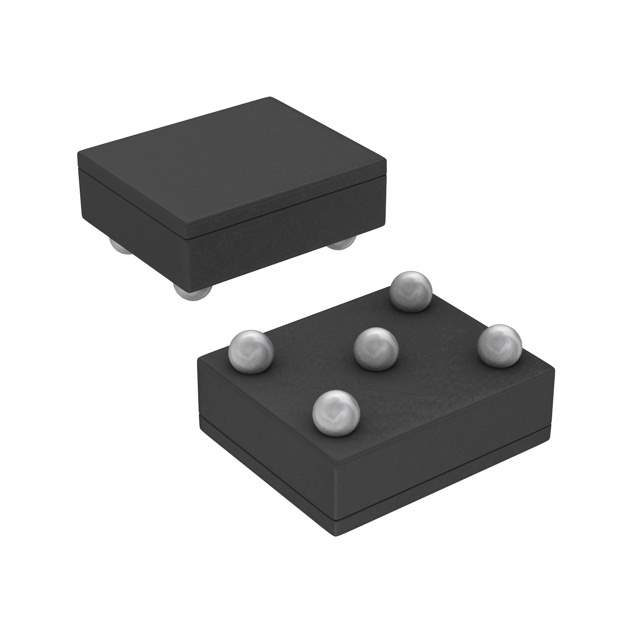

LP2985ITPX-3.3 Real Image
Same model may have multiple batches, images only for reference.

LP2985ITPX-3.3

Part No LP2985ITPX-3.3
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 3.3V 0.15A 5DSBGA
Datasheet
LP2985ITPX-3.3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 16V
Nominal Output Voltage (Min/Fixed) 3.3V
Dropout Voltage-Max 0.58V @ 150mA
Output Current 150mA
Operating Supply Current 95μA to 2.5mA
PSRR 45dB (1kHz)
Control Features Enable
Protection Features Over Current, Over Temperature, Short Circuit
Temperature Range - Operating -40°C to 125°C
Regulator Topology Positive Fixed
Output Voltage 3.3V
Voltage - Dropout (Typical) 0.28V @ 150mA
Mounting SMD (SMT)
Case / Package 5-DSBGA
Win Source Part Number 071785-LP2985ITPX-3.3
Ultra Librarian 3D Model Ultra Librarian LP2985ITPX-3.3 CAD Model

Description

The LP2985ITPX-3.3 is a high-performance, micro-power voltage regulator from Texas Instruments, known for its innovative and reliable products. This advanced voltage regulator is designed to deliver exceptional performance in a wide range of applications.

  • Fixed Output Voltage: 3.3V
  • Output Current: 150mA
  • Features: Low dropout voltage, high accuracy (±1%), ultra-low quiescent current, shutdown feature, thermal shutdown, current limit protection
  • Package: 5-pin SOT-23
  • Applications: Digital and analog applications, battery-powered applications
