Overview of Texas Instruments LP38691SD-2.5

The Texas Instruments LP38691SD-2.5 is a highly efficient, low-dropout voltage regulator designed to deliver a fixed output voltage of 2.5V with an output current up to 500 mA. This regulator is part of TI's LP38691 series, which is known for its low dropout performance and excellent stability while operating with low-value, low-cost ceramic capacitors.

Key Features

• Output Voltage: The device provides a precise 2.5V output, making it suitable for a wide range of applications that require a stable voltage source.
• High Output Current: With the capability to deliver up to 500 mA, the LP38691SD-2.5 can power a variety of ICs and microprocessors.
• Low Dropout: The low dropout voltage allows for efficient operation even when the input voltage is very close to the output voltage, enhancing battery life in portable applications.
• Stability: The regulator is stable with ceramic output capacitors, which are smaller, more reliable, and have lower equivalent series resistance (ESR) than tantalum or aluminum electrolytic capacitors.
• Thermal Protection: The device includes an internal thermal shutdown mechanism that protects the circuit from damage due to excessive temperature.
• Overcurrent Protection: Built-in current limit functionality helps to protect the regulator and the load from fault conditions.

Applications

The LP38691SD-2.5 is versatile and can be used in a variety of electronic applications, including:

• Portable and battery-powered devices
• Microcontroller power supplies
• Peripheral power supplies
• Reference voltage sources
• Linear power supplies

Packaging and Availability

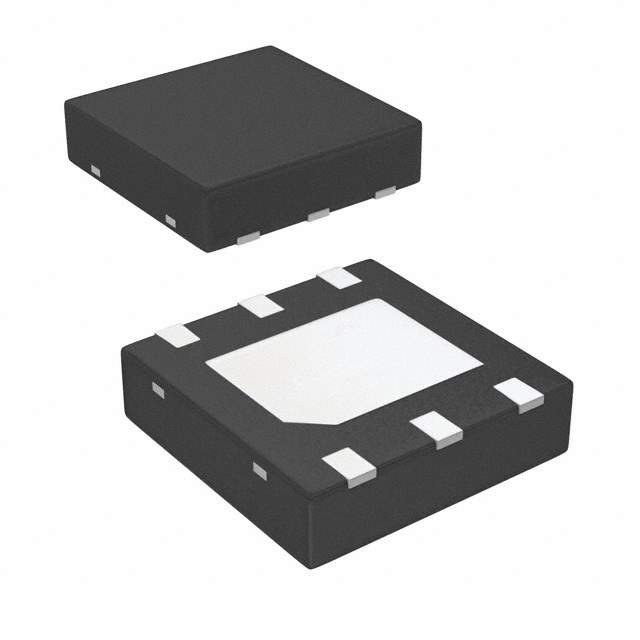

The LP38691SD-2.5 is available in a compact, surface-mount package, making it ideal for space-constrained applications. It is also characterized for operation over the full industrial temperature range of -40°C to 125°C, ensuring reliable performance in diverse operating conditions. Texas Instruments provides comprehensive technical support and documentation, making integration into your design project straightforward.

For detailed specifications, application notes, and evaluation resources, visit the Texas Instruments official website or contact their support team for assistance.
