Product Overview: LP3874EMPX-3.3 Voltage Regulator

The LP3874EMPX-3.3 from Texas Instruments is a high-performance, fast ultra-low-dropout linear regulator (LDO) that is designed to provide up to 800 mA of output current. This LDO operates with an extremely low dropout voltage, which makes it ideal for applications where voltage supply stability is critical.

With an input voltage range from 2.5V to 7V and a fixed output voltage of 3.3V, the LP3874EMPX-3.3 ensures a consistent and reliable power supply for a variety of digital and analog circuits. The device is characterized by its high accuracy, with a tight output voltage tolerance of ±1%, ensuring precise voltage regulation for sensitive components.

Key Features:

• Low Dropout: With a dropout voltage typically less than 280 mV at full load, the LP3874EMPX-3.3 allows for efficient operation even when the input voltage is close to the output voltage.
• High Output Current: Capable of delivering up to 800 mA of continuous output current, this LDO can power a wide range of devices.
• Stable with Low ESR Output Capacitors: The regulator is stable with ceramic capacitors, which have lower equivalent series resistance (ESR) than tantalum or aluminum electrolytic capacitors, providing better transient response and noise reduction.
• Thermal Shutdown and Current Limit Protection: Built-in safety features protect the device and the connected components from damage due to overheating or overcurrent conditions.
• Adjustable Output Voltage Version: While the LP3874EMPX-3.3 comes with a fixed 3.3V output, Texas Instruments also offers an adjustable version for applications requiring different output voltages.

Applications:

The LP3874EMPX-3.3 is well-suited for a variety of applications, including:

• FPGA, DSP, and ASIC power supplies
• Portable and battery-powered electronics
• Networking and telecommunication equipment
• Consumer electronics

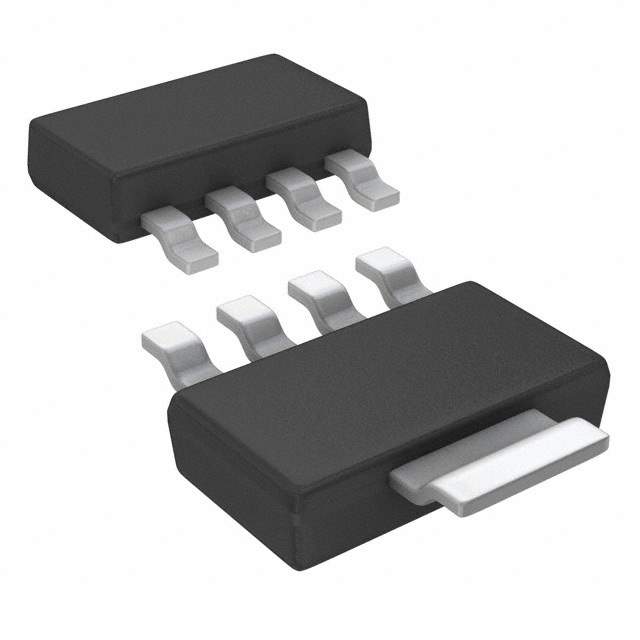

Its small footprint and low profile make it an excellent choice for space-constrained applications. The LP3874EMPX-3.3 is offered in a 5-pin SOT-223 package, which is designed for surface mount technology and provides good thermal performance. This LDO is a reliable solution for designers looking to maintain a stable voltage rail in their electronic systems.
