Product Overview: LP3917RLX-NL/NOPB

The LP3917RLX-NL/NOPB is a highly integrated power management integrated circuit (PMIC) from Texas Instruments, designed specifically for handheld and mobile applications. This versatile component is engineered to provide a comprehensive power management solution, featuring multiple voltage regulators, a battery charger, an audio amplifier, and a host of other functionalities to support the complex power requirements of modern portable devices.

Key Features

• Multiple Voltage Regulators: The device includes several buck and LDO (Low Dropout) regulators, allowing it to supply a variety of voltage rails required by the system's components.
• Integrated Battery Charger: An efficient Li-Ion or Li-Polymer battery charger is built into the LP3917RLX-NL/NOPB, complete with features such as temperature monitoring and programmable charging parameters to ensure safe and reliable battery charging.
• Audio Amplifier: The inclusion of an audio amplifier simplifies the design of audio output capabilities, making it ideal for devices that require sound playback or notification features.
• Power Sequencing: The PMIC provides configurable power sequencing, which helps to manage the power-up and power-down order of system components, thus preventing damage and ensuring stable operation.
• Thermal Protection: With built-in thermal protection, the LP3917RLX-NL/NOPB is capable of safeguarding itself and the device it powers from overheating.

Applications

• Smartphones
• Tablets
• Portable Media Players
• Handheld Gaming Devices
• GPS Units
• Other Battery-Powered Devices

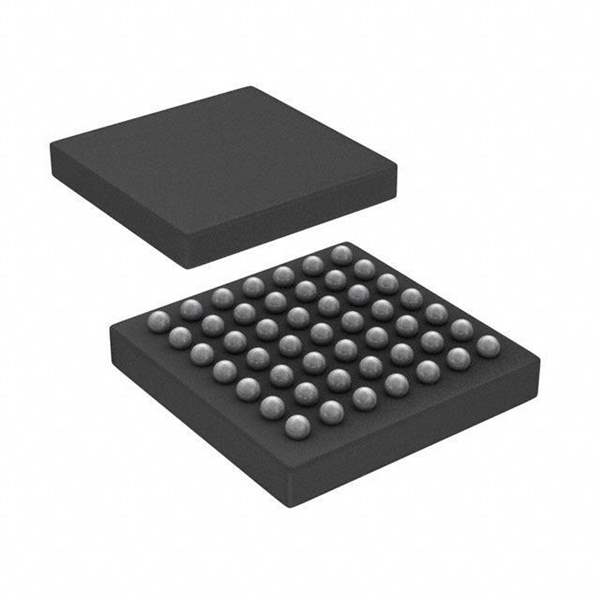

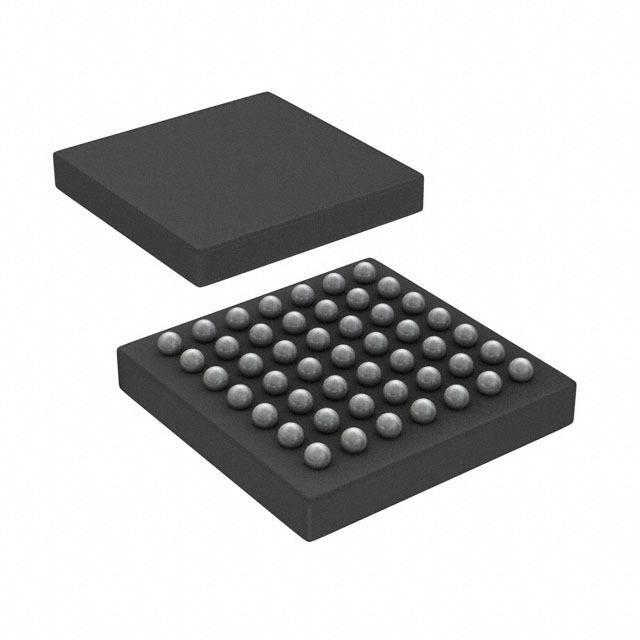

With its compact design and the NOPB (No Lead (Pb)) designation, the LP3917RLX-NL/NOPB is not only space-efficient but also environmentally friendly, adhering to the RoHS (Restriction of Hazardous Substances) regulations. This PMIC is available in a fine-pitch micro SMD package, which enables it to fit into the increasingly small form factors demanded by today's portable electronics.

Overall, the LP3917RLX-NL/NOPB from Texas Instruments is a versatile and efficient solution for power management in portable devices, offering a high level of integration to minimize design complexity and accelerate time-to-market for product developers.
