Same model may have multiple batches, images only for reference.

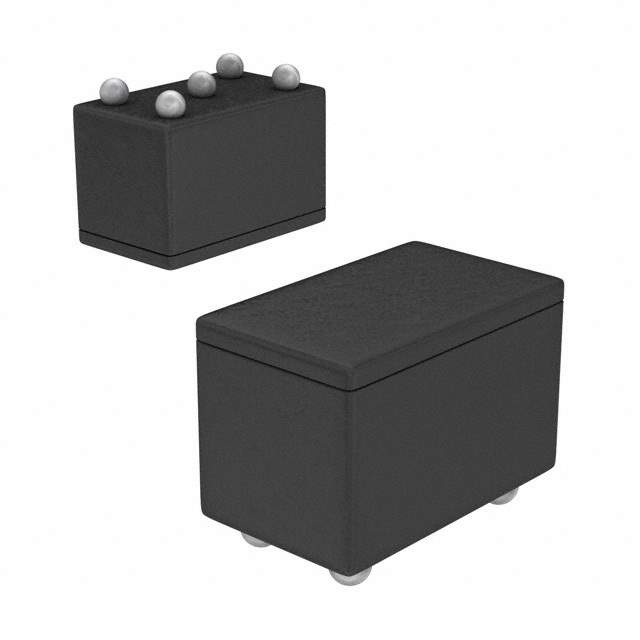

LP3985IBPX-285/NOPB Real Image
Same model may have multiple batches, images only for reference.

LP3985IBPX-285/NOPB

Part No LP3985IBPX-285/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 2.85V 0.15A 5DSBGA
Datasheet
LP3985IBPX-285/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 6V
Nominal Output Voltage (Min/Fixed) 2.85V
Dropout Voltage-Max 0.1V @ 150mA
Output Current 150mA
Operating Supply Current 150μA to 250μA
PSRR 50dB to 40dB (1kHz to 10kHz)
Control Features Enable
Protection Features Over Current, Over Temperature, Short Circuit
Temperature Range - Operating -40°C to 125°C
Regulator Topology Positive Fixed
Output Voltage 2.85V
Voltage - Dropout (Typical) 0.06V @ 150mA
Mounting SMD (SMT)
Case / Package 5-DSBGA
Win Source Part Number 137221-LP3985IBPX-285/NOPB
Ultra Librarian 3D Model Ultra Librarian LP3985IBPX-285/NOPB CAD Model

Description

The LP3985IBPX-285/NOPB is a high-quality, advanced micro-power product from Texas Instruments, a renowned global semiconductor design and manufacturing company. This product is a low noise, low dropout CMOS (Complementary Metal-Oxide-Semiconductor) regulator that is specifically designed to meet the stringent requirements of RF and analog circuits.

  • Input Voltage Range: 2.5V to 6V
  • Output Voltage: 2.85V
  • Output Current: 150mA
  • Features: Low noise operation, high PSRR, low dropout voltage, shutdown mode, built-in overcurrent and thermal protection
  • Package: Small, leadless MicroSMD
  • Compliance: RoHS compliant, lead-free
