Product Overview: LP3985IBPX-3.3

The LP3985IBPX-3.3 is a highly reliable, low-dropout linear voltage regulator designed and manufactured by Texas Instruments, a leader in semiconductor solutions. This micro-power device is specifically engineered to maintain a stable 3.3V output voltage while delivering a continuous current of up to 150mA, making it an excellent choice for portable electronic applications where power efficiency and space constraints are critical considerations.

Key Features

• Output Voltage: Precisely regulated 3.3V output, ideal for powering 3.3V logic and mixed-signal devices.
• High Accuracy: Offers a high accuracy output with a tight tolerance, ensuring reliable performance for sensitive electronic circuits.
• Low Dropout: Features a low dropout voltage, enabling operation with minimal voltage difference between the input and output, thus conserving battery life in portable devices.
• Low Quiescent Current: Exhibits an extremely low quiescent current, which helps to maximize battery life in portable applications by minimizing the power consumed when in standby mode.

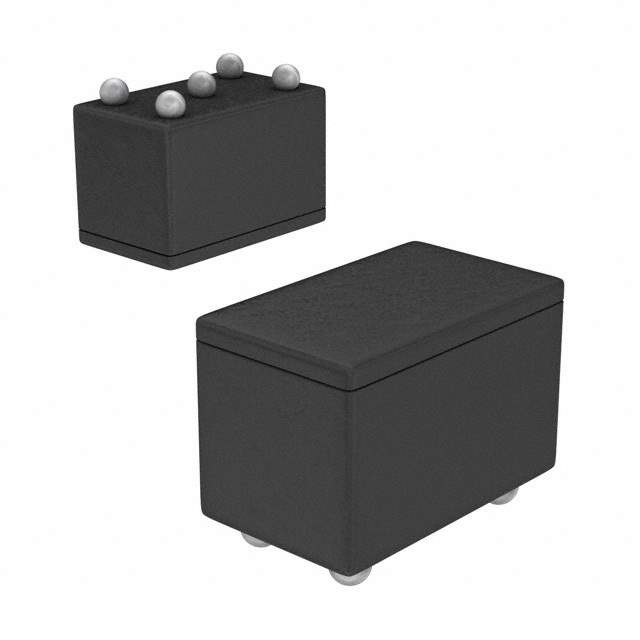

• Package Type: Available in a compact, surface-mountable DSBGA package that is suitable for space-constrained applications.
• Thermal Protection: Integrated thermal shutdown protection ensures the device operates within safe temperature limits, preventing damage due to overheating.
• Stable with Low-ESR Capacitors: The LP3985IBPX-3.3 is stable with ceramic capacitors, which have low equivalent series resistance (ESR) and are smaller than traditional tantalum capacitors.

Applications

The LP3985IBPX-3.3 voltage regulator is versatile and can be used in a range of applications, including but not limited to:

• Mobile phones and PDAs
• Wireless LAN devices
• GPS receivers
• Portable audio and video equipment
• Handheld instruments

With its compact form factor and efficient power management capabilities, the LP3985IBPX-3.3 from Texas Instruments is an excellent choice for designers looking to optimize their power-sensitive applications. Its combination of features ensures reliable performance, making it a go-to component for maintaining steady voltage supply in an array of electronic devices.
