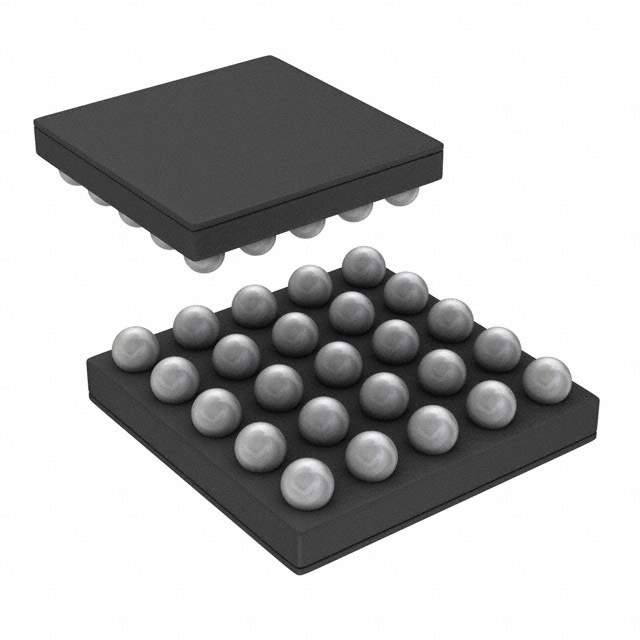

The LP5523TMX/NOPB is a versatile, programmable LED driver designed and manufactured by Texas Instruments. This component is engineered to provide a flexible solution for controlling up to nine LEDs independently with a programmable lighting sequence, making it an ideal choice for a wide range of applications, including smartphones, tablets, and other portable devices where advanced lighting effects are desired.

Key Features

• Programmable LED Driver: The LP5523TMX/NOPB allows for individual control of up to nine LEDs, which can be programmed via an I2C-compatible interface.
• Integrated Memory: With its onboard memory for lighting sequences, this LED driver can store and execute complex lighting patterns without the need for continuous processor control, reducing power consumption and freeing up system resources.
• Charge Pump: The built-in charge pump ensures efficient operation over a wide input voltage range, providing constant current to the LEDs even when the supply voltage varies.
• Energy Efficient: The device includes features such as automatic power-save mode and a voltage-adjustment function, which contribute to its energy efficiency.
• Flexible Power Supply: The LP5523TMX/NOPB operates over a supply voltage range of 2.7V to 5.5V, accommodating various power sources and system requirements.

Applications

The LP5523TMX/NOPB is suitable for a variety of applications where dynamic and programmable lighting is essential. It is commonly used in:

• Mobile phones and other personal electronics
• Status and indicator lighting
• Fun and decorative lighting
• Backlighting for displays and keypads

Quality and Reliability

As with all Texas Instruments products, the LP5523TMX/NOPB is built to high-quality standards, ensuring reliability and performance in demanding environments. The component is available in a compact, lead-free package and is RoHS compliant, reflecting TI's commitment to environmental sustainability.

Ordering Information

The LP5523TMX/NOPB is available in a compact QFN-20 package and can be ordered through Texas Instruments' official distributors. For detailed information, including pricing, datasheets, and support, please visit the Texas Instruments website or contact their customer support team.
