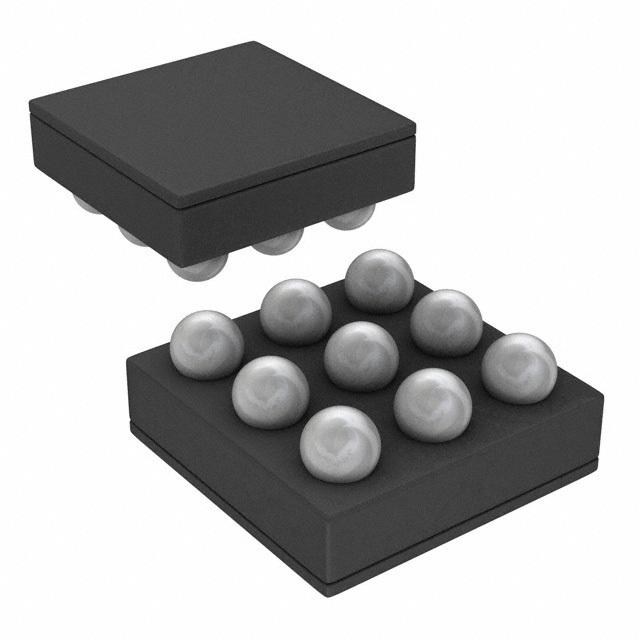

LP5524TMX-5/NOPB Texas Instruments
Same model may have multiple batches, images only for reference.

LP5524TMX-5/NOPB

Part No LP5524TMX-5/NOPB
Manufacturer Texas Instruments
Catalog PMIC - LED Drivers
Description IC LED DRIVER LIN DIM 25MA 9USMD
Datasheet
LP5524TMX-5/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type Linear
Internal Switch(s) Yes
Number of Outputs 4
Operating Input Voltage(Min) 2.7V
Maximum Supply Voltage 5.5V
Channel Output Current 25mA
Dimming PWM
Applications Backlight
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 9-uSMD
Win Source Part Number 104206-LP5524TMX-5/NOPB
Ultra Librarian 3D Model Ultra Librarian LP5524TMX-5/NOPB CAD Model

Description

The LP5524TMX-5/NOPB is a high-quality, versatile LED driver produced by the globally renowned company, Texas Instruments. This advanced product is specifically designed to manage and control LED arrays, making it an excellent choice for those seeking to optimize their LED lighting systems.

  • Features:
  • 9-channel RGB LED driver in a micro SMD package
  • Supply voltage range of 2.5V to 5.5V
  • Maximum supply current of 3mA for energy efficiency
  • I2C interface for easy communication with other devices and systems
  • Integrated programmable 32-step sequencer for creating intricate lighting patterns
  • Charge pump for consistent LED current despite input voltage variations
  • Automatic power-saving mode to minimize power consumption
  • Compact size suitable for space-constrained applications
  • RoHS compliant and lead-free

The LP5524TMX-5/NOPB is a high-performance LED driver that combines versatility, energy efficiency, and environmental friendliness.
