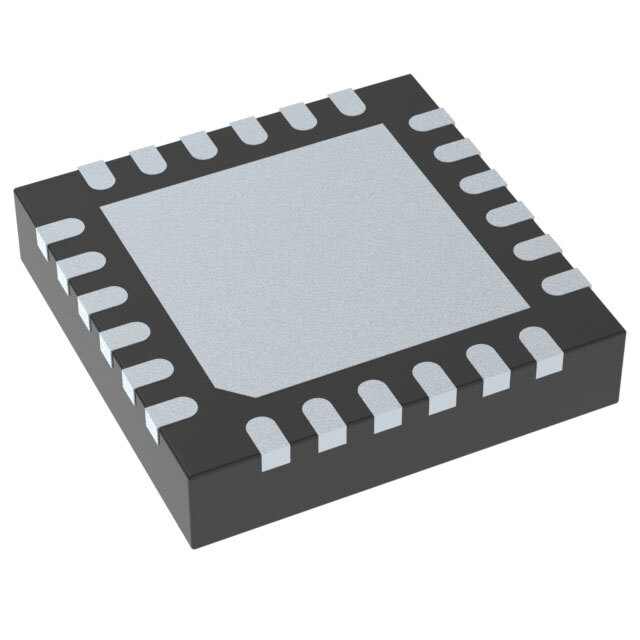

LP8543SQ Texas Instruments – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

LP8543SQ

Part No LP8543SQ
Manufacturer Texas Instruments
Catalog PMIC - LED Drivers
Description IC LED DRV RGLTR PWM 60MA 24WQFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)Power Management (PMIC)LED Drivers
Manufacturer Texas Instruments
Packaging Tape & Reel (TR)
Part Status Obsolete
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 7
Voltage - Supply (Min) 5.5V
Voltage - Supply (Max) 22V
Voltage - Output 40V
Current - Output / Channel 60mA
Frequency 625kHz ~ 1.25MHz
Dimming PWM
Applications Backlight
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 24-WFQFN Exposed Pad
Supplier Device Package 24-WQFN (4x4)
Base Product Number LP8543
